The PVC PU belt joint machine is a device used for joining or connecting PVC (Polyvinyl Chloride) and PU (Polyurethane) belts together. It is commonly used in industries such as manufacturing, distribution, and logistics, where conveyor belts are utilized for transportation or material handling purposes.
The machine usually consists of heating elements, pressure plates, and a control system. The process involves heating the ends of the PVC and PU belts to a specific temperature, then applying pressure to bond them together. This creates a strong and durable joint, ensuring smooth and efficient operation of the conveyor system.
It is important to follow the manufacturer's instructions and safety guidelines when using the PVC PU belt joint machine to ensure proper operation and minimize the risk of accidents. Additionally, regular maintenance and inspection of the machine are necessary to maintain its performance and prolong its lifespan.
Common Models, if you need other models or have other special technical requirements, please just contact us.
| Model | JAC-300 | JAC-600 | JAC-900 | JAC-1200 | JAC-1500 | JAC-1800 | JAC-2000 |
| Joint Length | 305mm/12" | 610mm/24" | 914mm/36" | 1219mm/48" | 1524mm/60" | 1800mm/72" | 2000mm/80" |
| Joint Width | 130mm/5.1" | 130mm/5.1" | 130mm/5.1" | 130mm/5.1" | 130mm/5.1" | 130mm/5.1" | 130mm/5.1" |
| Upper Part Weight | 10kg/22 Lbs | 14kg/31 Lbs | 19kg/42 Lbs | 23kg/51 Lbs | 28kg/62 Lbs | 32kg/70 Lbs | 37kg/81 Lbs |
| Bottom Part Weight | 11kg/24 Lbs | 15kg/33 Lbs | 20kg/44 Lbs | 25kg/55 Lbs | 30kg/66 Lbs | 35kg/77 Lbs | 40kg/88 Lbs |
| Total Weight | 21kg/46 Lbs | 29kg/64 Lbs | 39kg/86 Lbs | 48kg/106 Lbs | 58kg/128 Lbs | 67kg/147 Lbs | 77kg/169 Lbs |
| Machine Length | 505mm/20" | 805mm/32" | 1105mm/44" | 1405mm/55" | 1705mm/67" | 2010mm/79" | 2210mm/87" |
| Machine Height | 220mm/8.5" | 220mm/8.5" | 220mm/8.5" | 220mm/8.5" | 220mm/8.5" | 220mm/8.5" | 220mm/8.5" |
| Max. Pressure | 2Bar/28PSI | 2Bar/28PSI | 2Bar/28PSI | 2Bar/28PSI | 2Bar/28PSI | 2Bar/28PSI | 2Bar/28PSI |
| Max. Temperature | 200℃/390℉ | 200℃/390℉ | 200℃/390℉ | 200℃/390℉ | 200℃/390℉ | 200℃/390℉ | 200℃/390℉ |
| Package Dimension | 770x370x310mm | 1070x370x310mm | 1370x370x310mm | 1726x370x310mm | 1926x370x310mm | 2230x370x310mm | 2430x70x310mm |
| Gross Weight with package | 25kg/57 Lbs | 35kg/77 Lbs | 43kg/95 Lbs | 53kg/117 Lbs | 61kg/134 Lbs | 72kg/158 Lbs | 82kg/180 Lbs |
The characteristics of the PVC PU belt connecting machine products produced by our factory are:
① Fast heating and cooling greatly improve work efficiency;
② Automatic heating, cooling, and cooling system;
③ The finished belt has a smooth and beautiful appearance;
④ Stable and reliable work;
⑤ Easy to operate and use;
Machine Color, we can make the color as per customers' demand

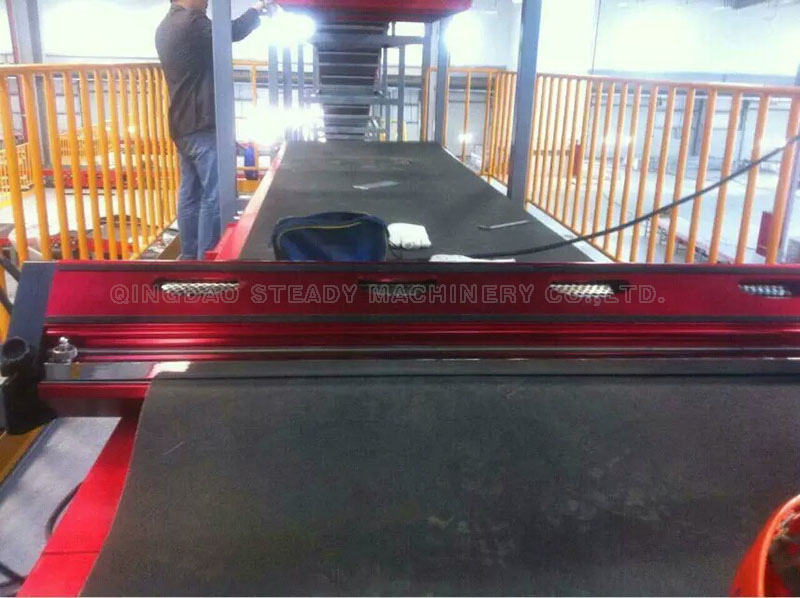

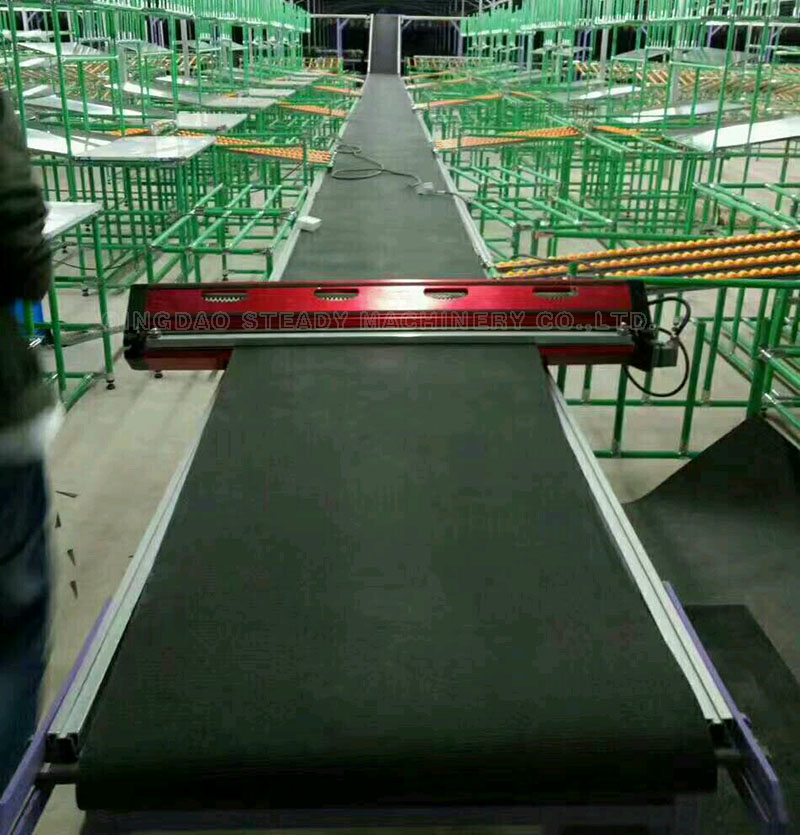

PVC PU belt joint work picture for reference:
Just contact us
