A rubber belt joint machine, also known as a rubber belt splicing machine or belt vulcanizing machine, is a specialized tool used for joining or splicing rubber belts. Rubber belts are commonly used in various industries for conveying materials, such as in mining, agriculture, and manufacturing.

The rubber belt joint machine is designed to create a strong and durable joint between two ends of a rubber belt, ensuring smooth and efficient operation. It typically consists of a machine frame, heating elements, pressure plates, and controls.

The splicing process starts with preparing the two ends of the rubber belt. This includes trimming, skiving, and cleaning the belt ends to ensure a proper fit and optimal bonding surface. The prepared belt ends are then positioned in the joint machine, which aligns and secures them in place.

The machine applies heat to the belt ends using heating elements or a heating platen. The heat softens the rubber material and activates the bonding agents or adhesives present in the belt or applied during the splicing process. Pressure plates or clamps are used to apply pressure to the heated belt ends, ensuring a firm and uniform splice.

The temperature, heating time, and pressure during the splicing process are controlled using the machine's control system. This helps achieve the optimal conditions for a strong and reliable joint.

Rubber belt joint machines are available in various sizes and configurations to accommodate different belt widths and thicknesses. They offer advantages such as precise control over the splicing process, improved belt strength and longevity, and reduced downtime for belt repairs or replacements.

Note that specific operation and features of a rubber belt joint machine may vary depending on the manufacturer and model.

Common Models, if you need other models or have other special technical requirements on size, pressure, working layer number, please just contact us.

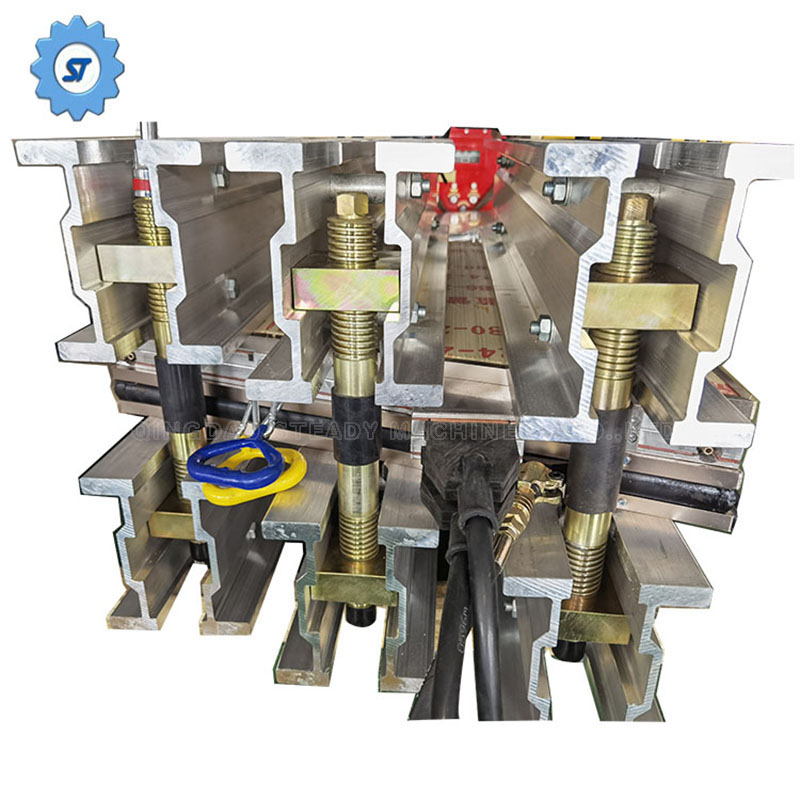

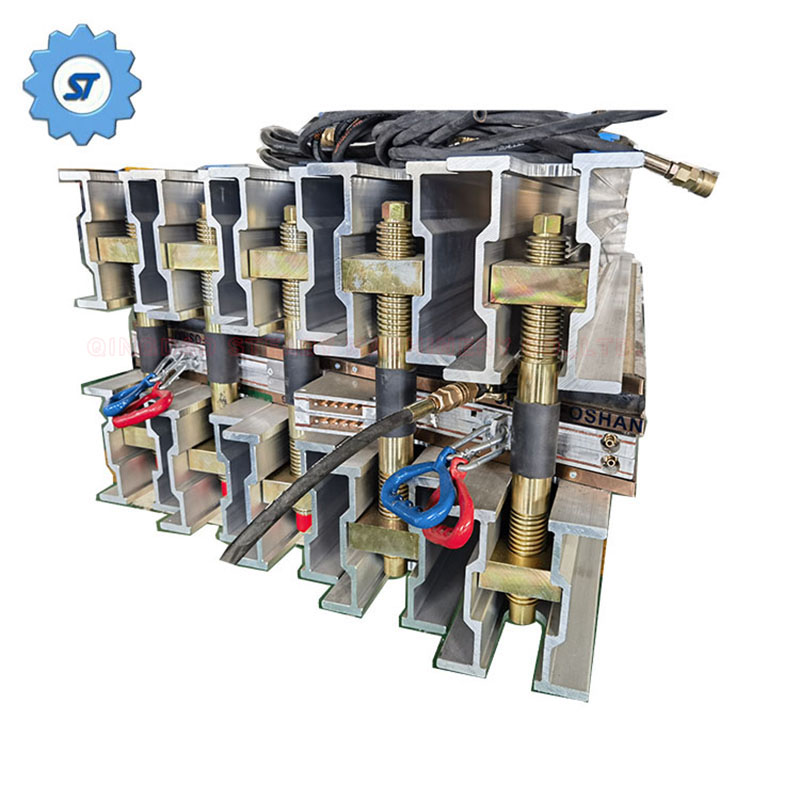

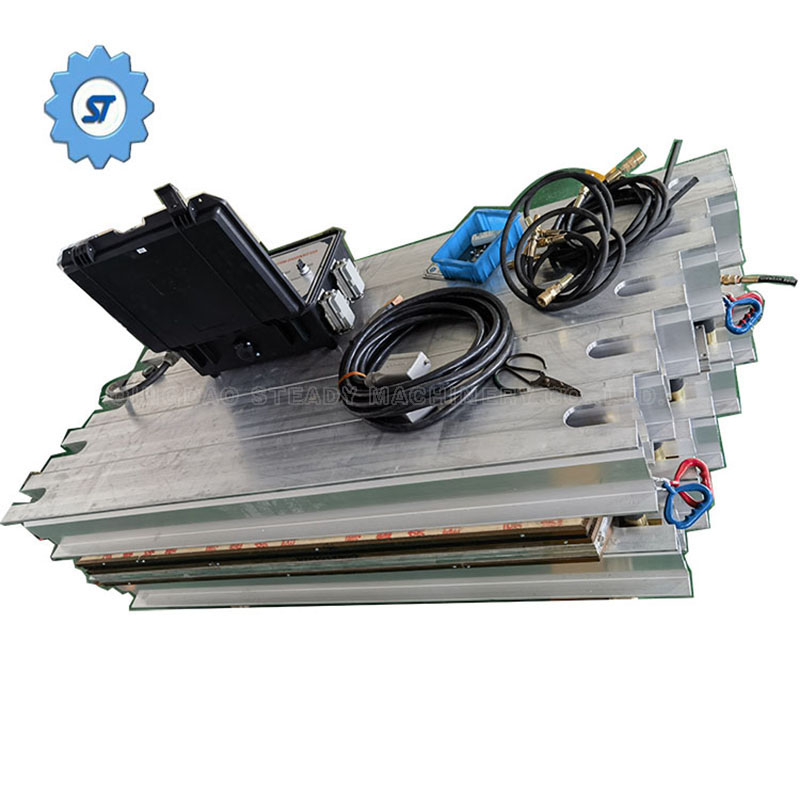

Detail Images of Conveyor Belt Splicing Joint Machine:

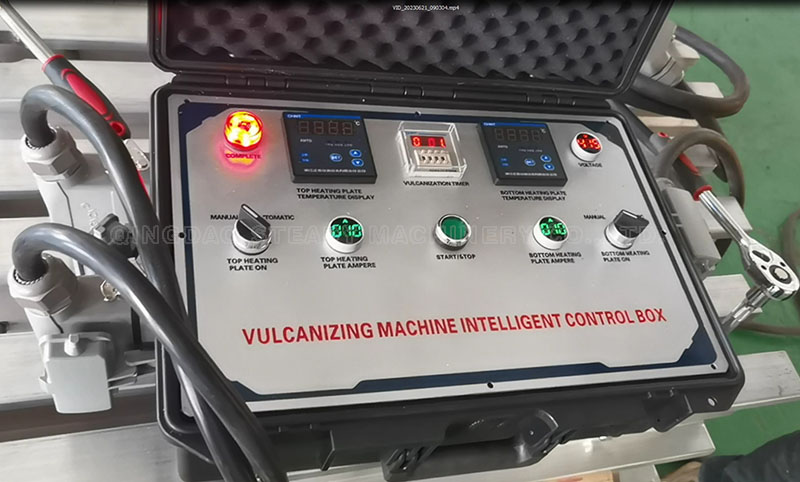

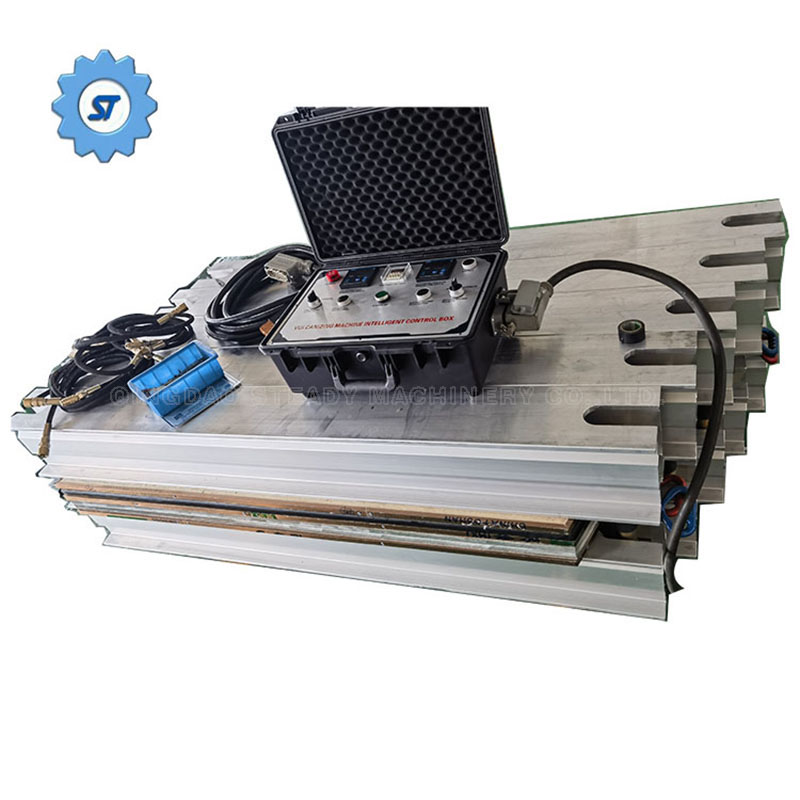

Control Box

CHNT Brand electronics are adoted, works accurate and stable.

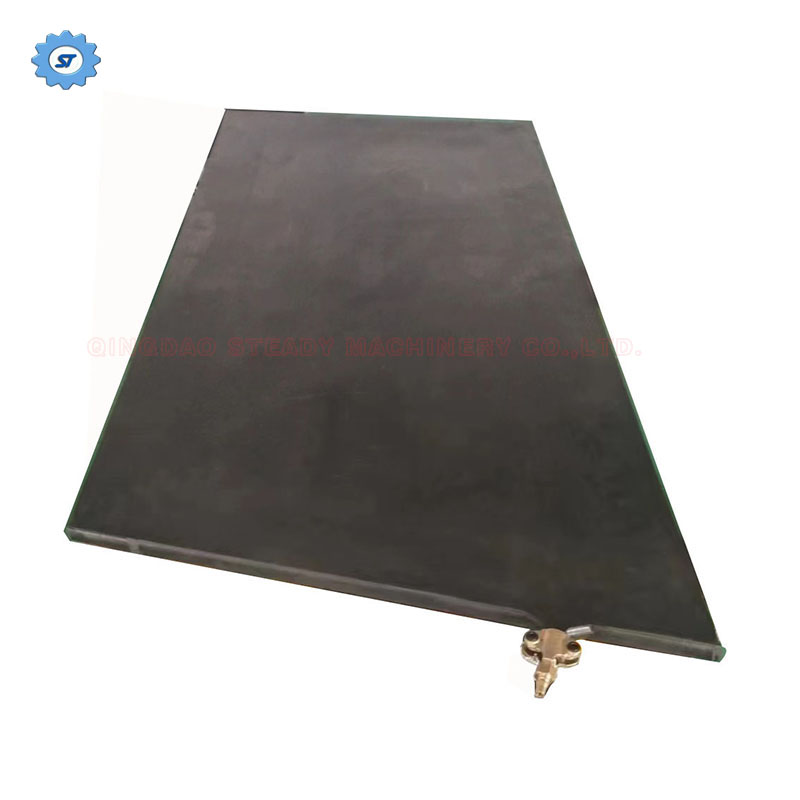

Pressure adding rubber water pressure bag/chamber :

Leading a new era of resilient water bags, our high-strength rubber pressure water bags surpass traditional limits! Equipped with high-quality fiber curtain layers for conveyor belts, each inch carefully constructed pays homage to durability and strength. Our rubber pressure water bags are high in strength, long in service, and leak proof.

Heating Blanket

This type heating elements is easy to connect, and with long service life.

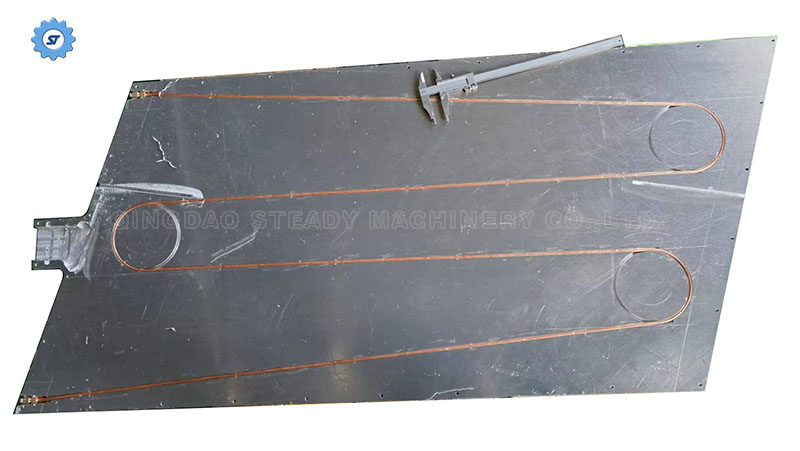

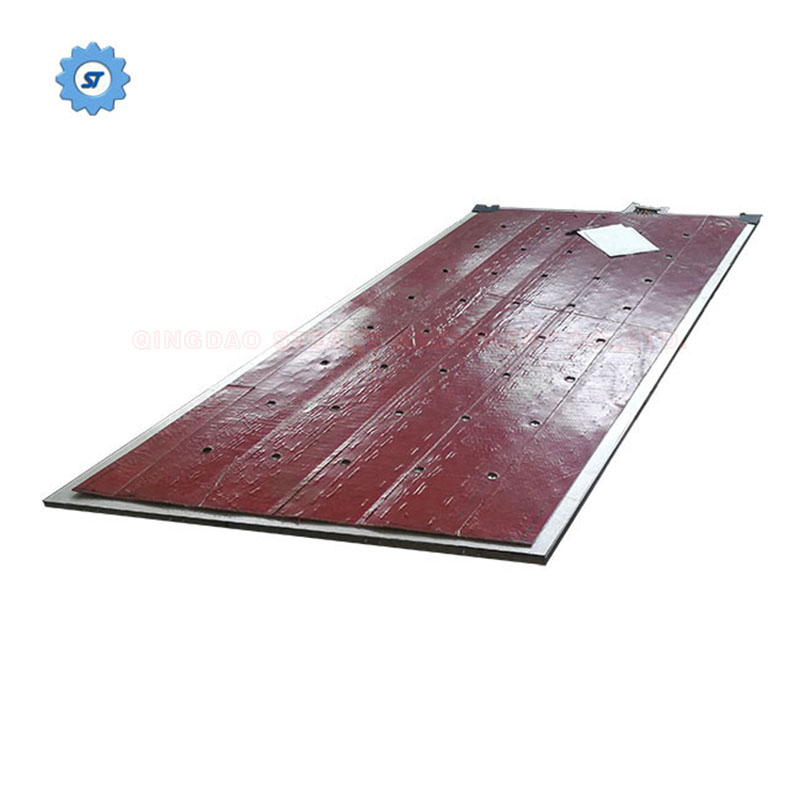

Heating Platen, the heating platen can be designed with or without the fast water cooling tunnel

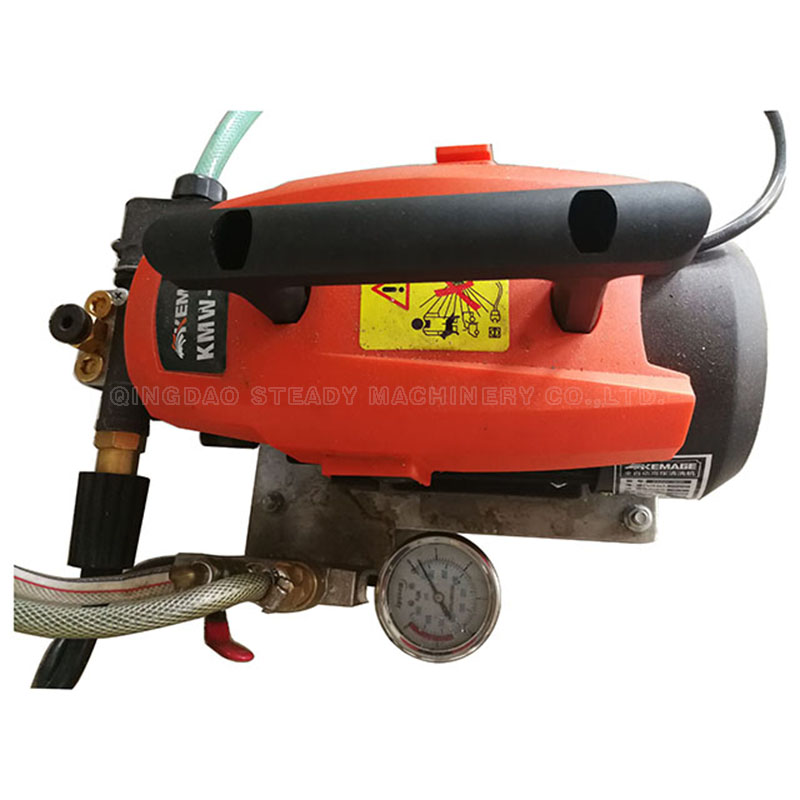

       High quality water pump, easy to use, and not easy have problem

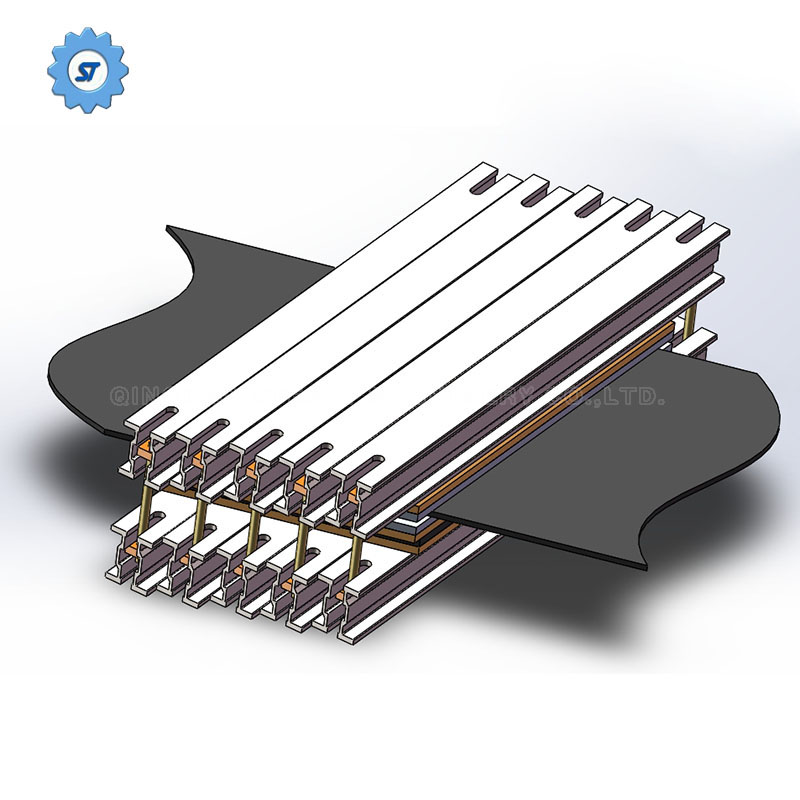

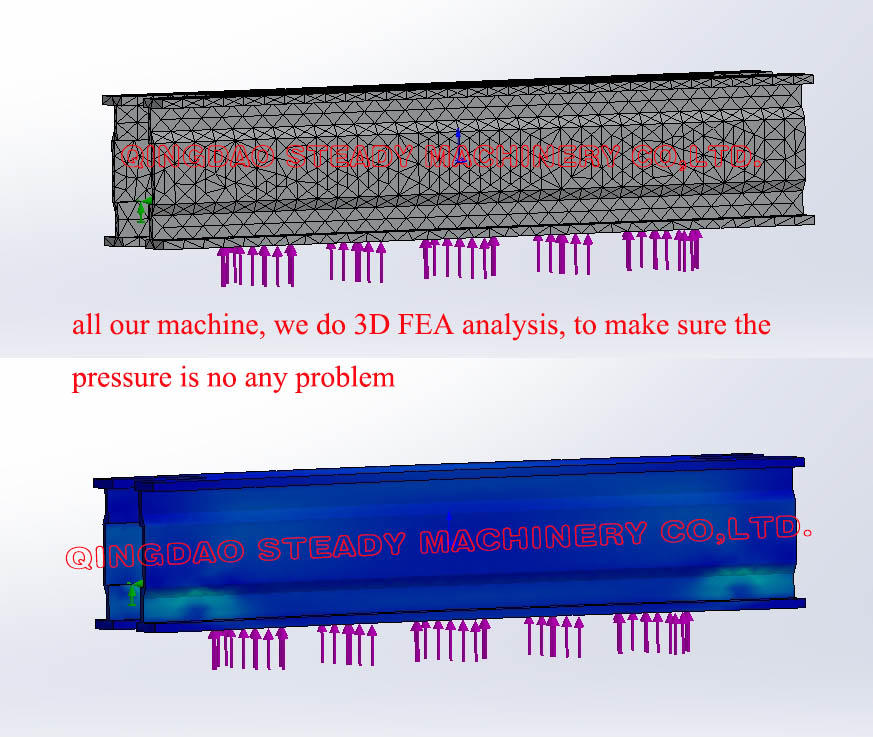

       3D design and FEA( Finite Elements Analysis) , plus our 20+ really production experience in the field, ensure our machine is high precision and enough strength to meet work needs, long service life and trouble free.

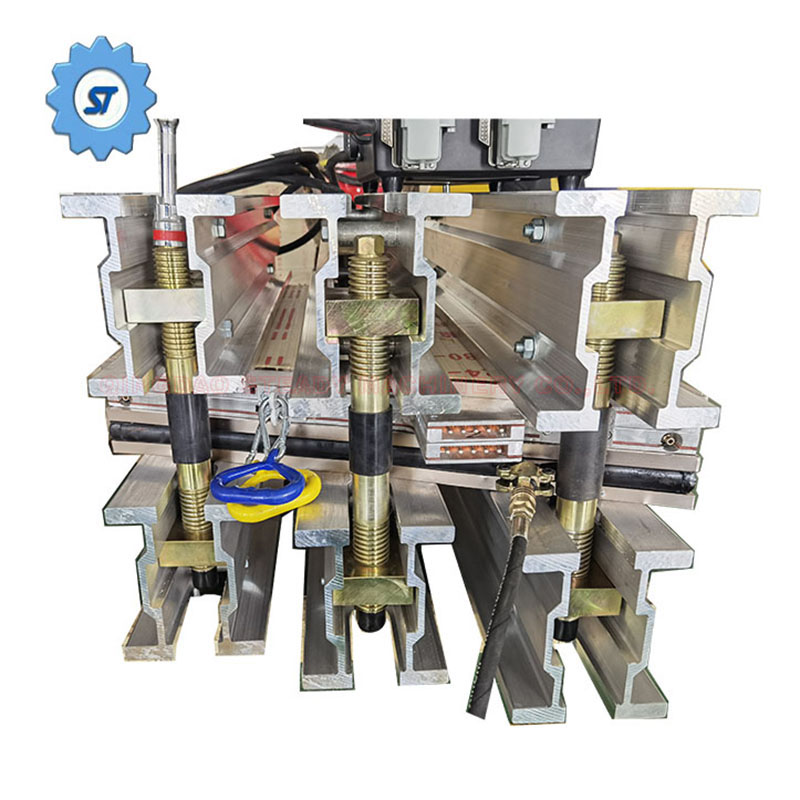

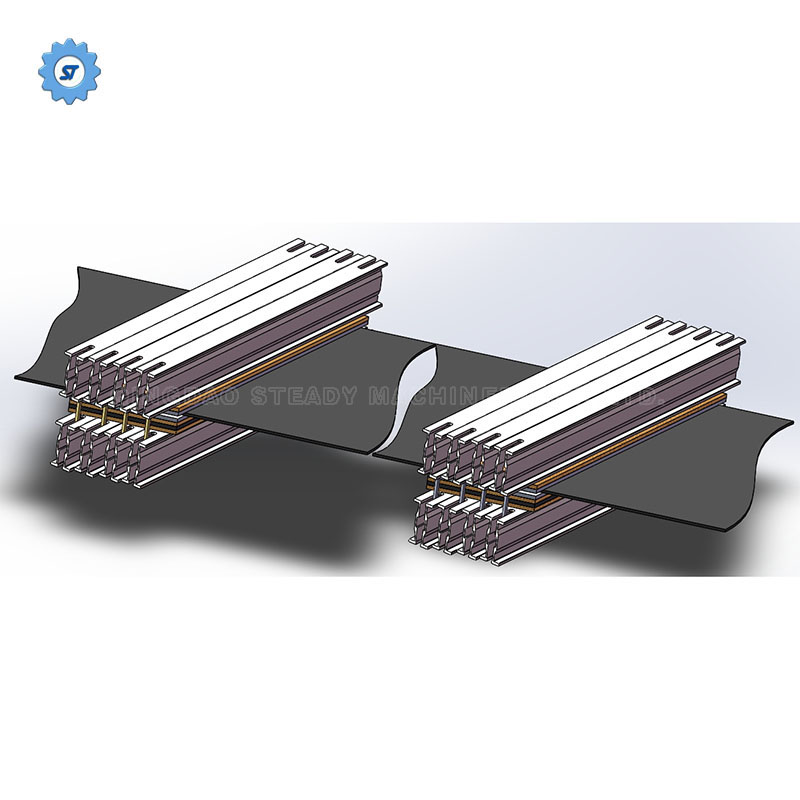

Below machine, can used as two sets seperate small machine, and when put close together, they can be use as a big set rubber conveyor belt splicing joint machine.

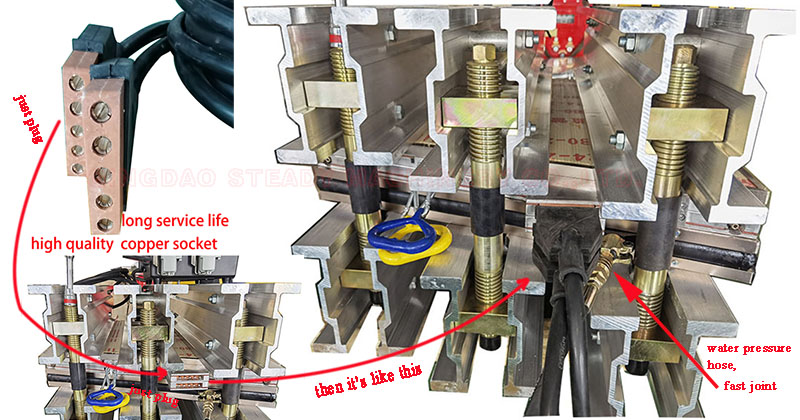

The use of the machine is very easy, just plug the the male plug into socket, switch on the power, then you can use the machine.

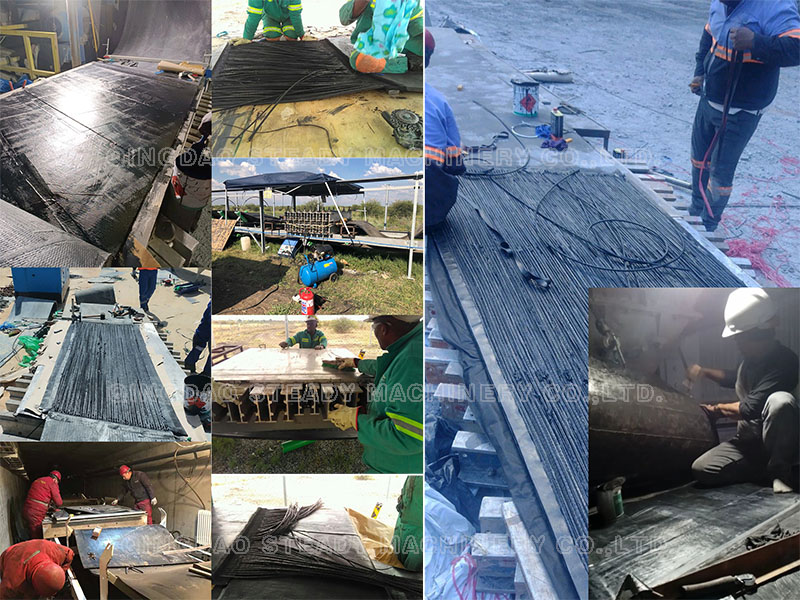

Rubber Belt Splicing Joint Machines Working in Various Spots

Just contact us
