The fabric reinforced rubber hose braiding machine is a specialized device used in the production of fabric-reinforced rubber hoses.

Rubber hose braiding machine is designed to apply braiding materials, such as yarn or wire, onto rubber hoses to enhance their strength and durability.

The hose braiding machine typically consists of a braiding head, a rotating drum or spindle, and a control system.

The braiding process involves feeding the rubber hose through the machine, while the braiding materials are simultaneously applied in a specific pattern and tension.

This creates a strong, reinforced layer around the hose, preventing it from expanding or bursting under high pressure.

The machine's control system allows operators to adjust the braiding speed, tension, and pattern according to the desired specifications of the fabric-reinforced hose.

The finished hoses can be used in various industries, including automotive, aerospace, and industrial applications, where high-pressure fluid transfer or containment is required.

We have different model, different spindle number, and different braiding pattern hose braiding machines.

Below the form is just one of the model for you reference.

Normally there are two kinds of of hose braiding machine according to hose running direction-Horizontal type and Vertical type.

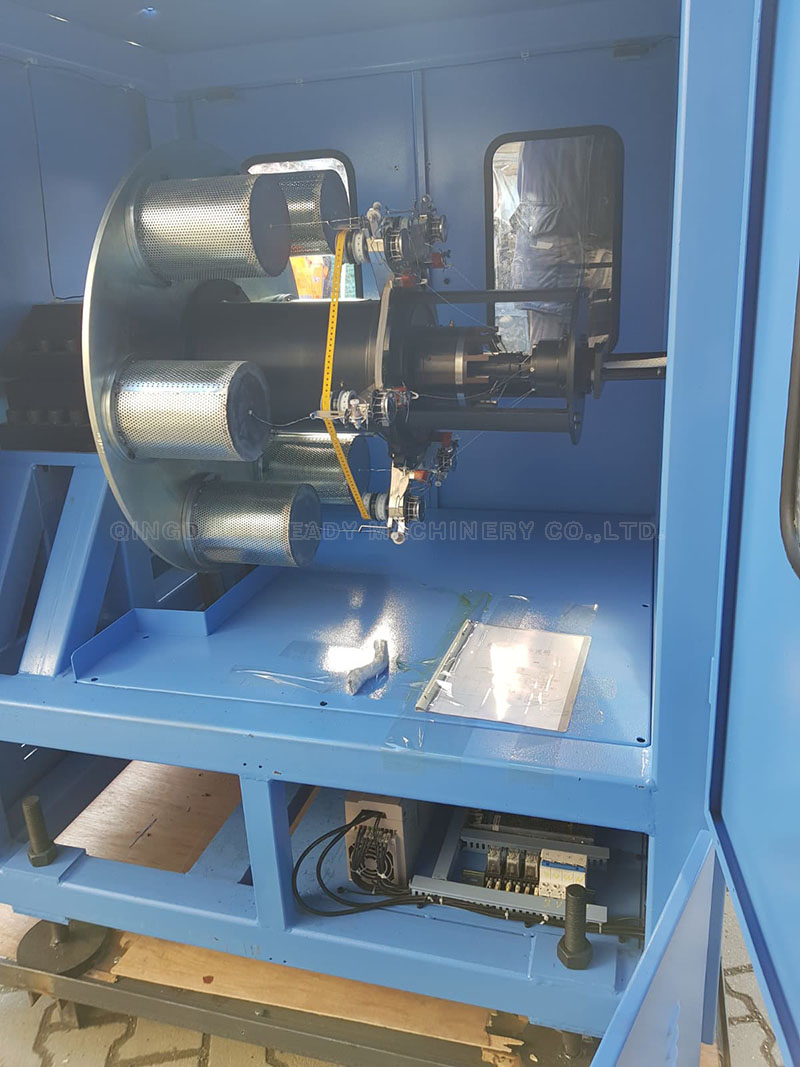

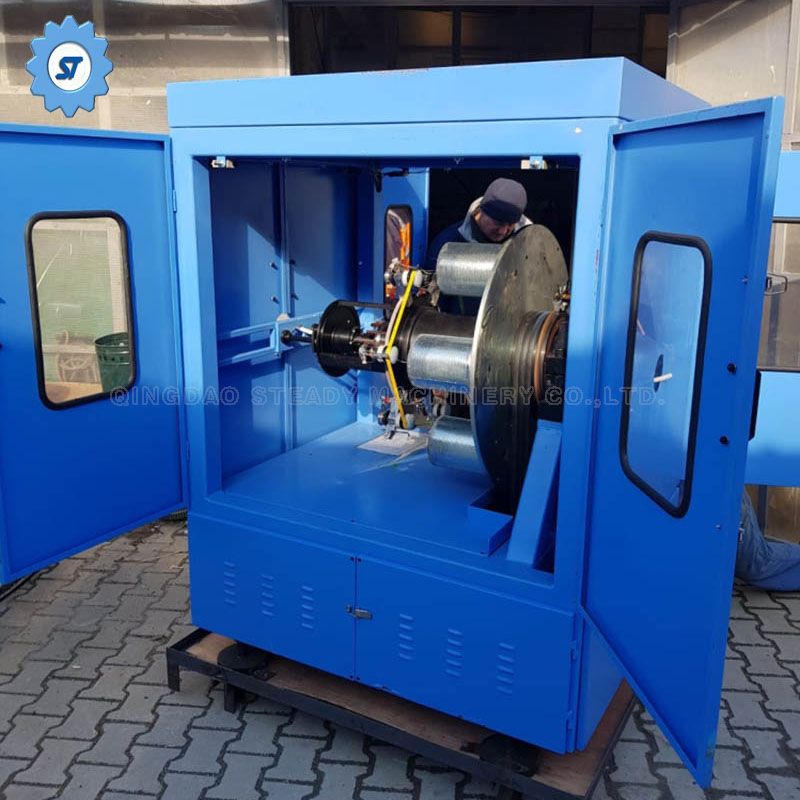

Horizontal type fabric reinforced rubber hose braiding machine, reference picture:

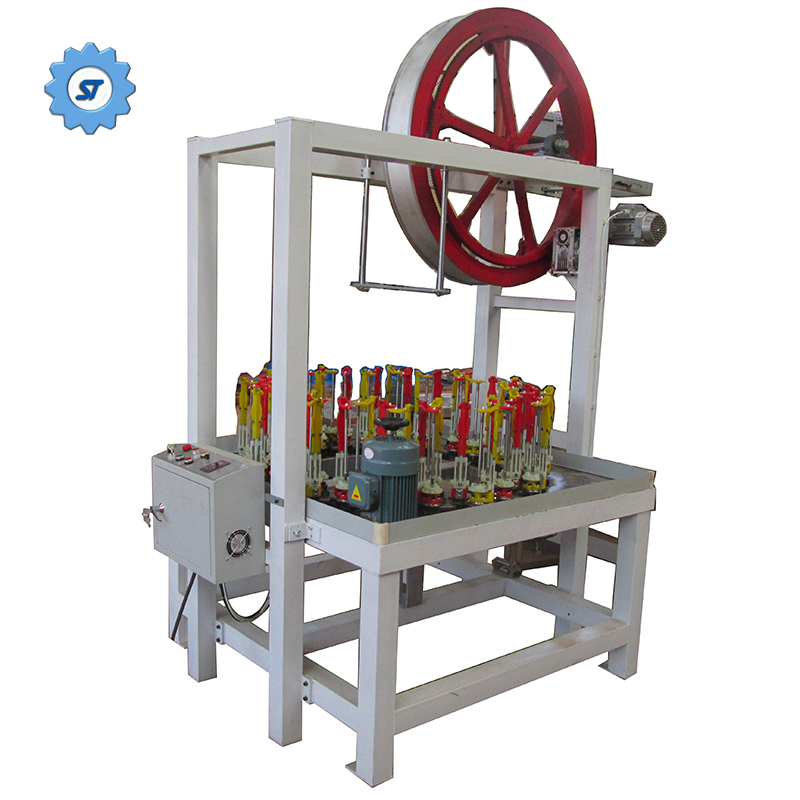

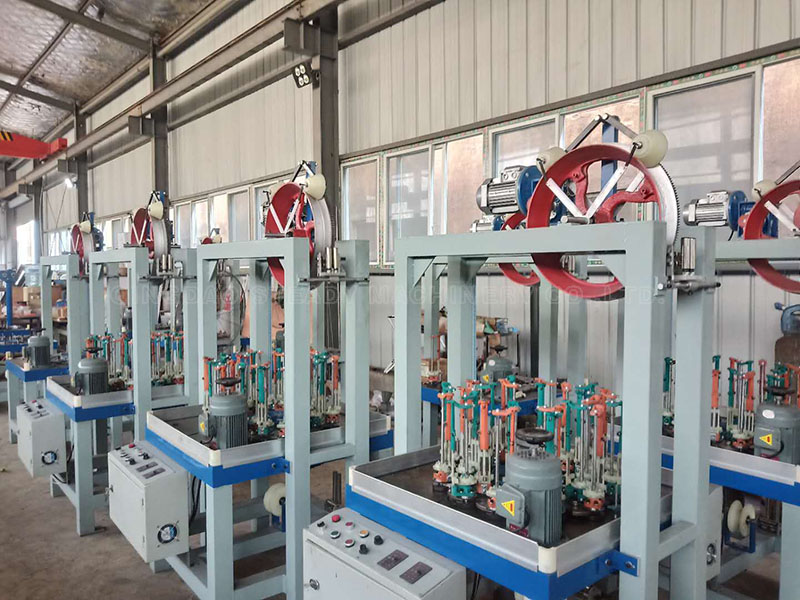

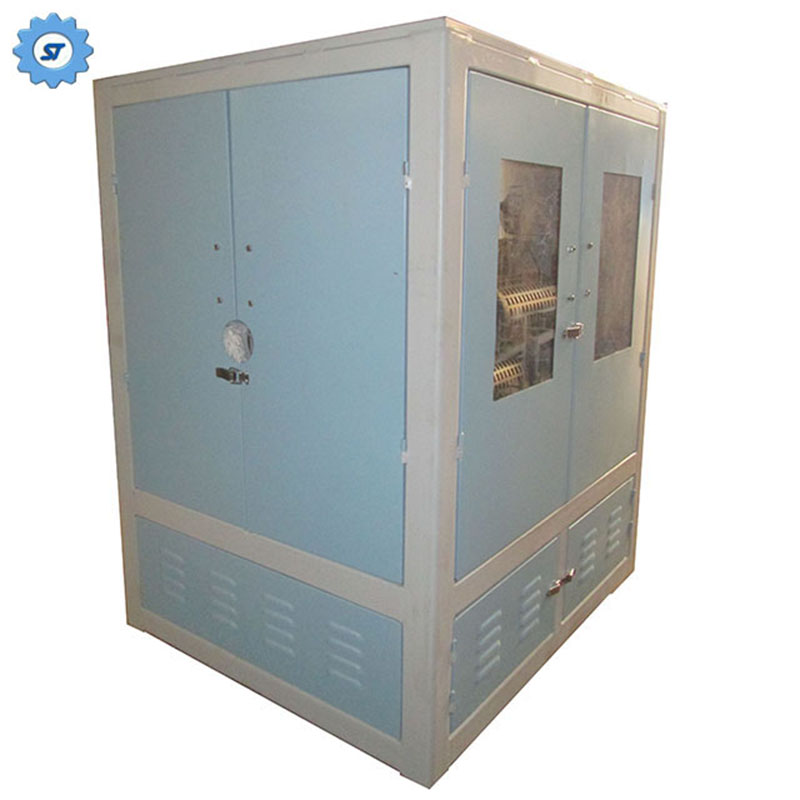

Vertical type hose braiding machine(reference picture:

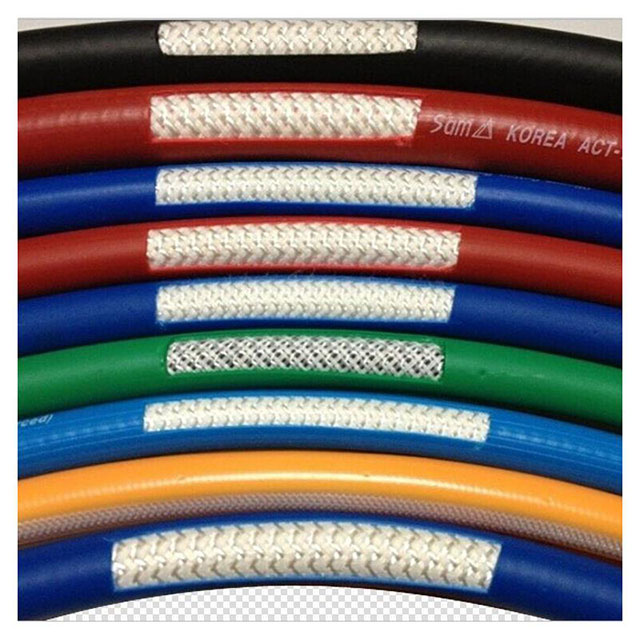

Braiding pattern of above machines:

If according to braiding pattern, there are three types fabric reinforced hose braiding machine normally. Above is the 1st kind.

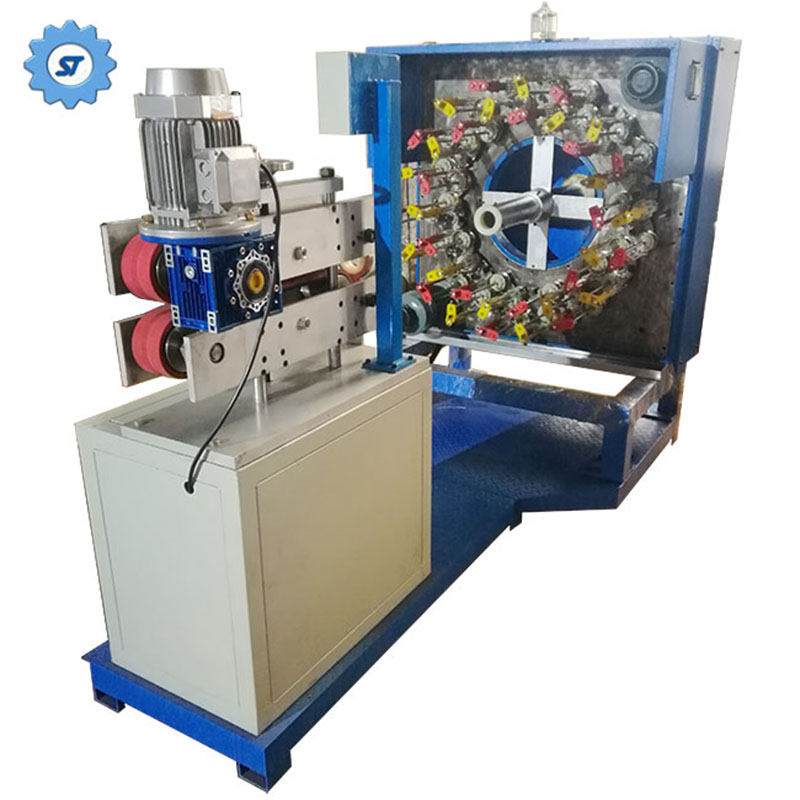

The 2nd type hose braiding machine, in China it's also been called hose wrapping/twining/twisting braiding machine,

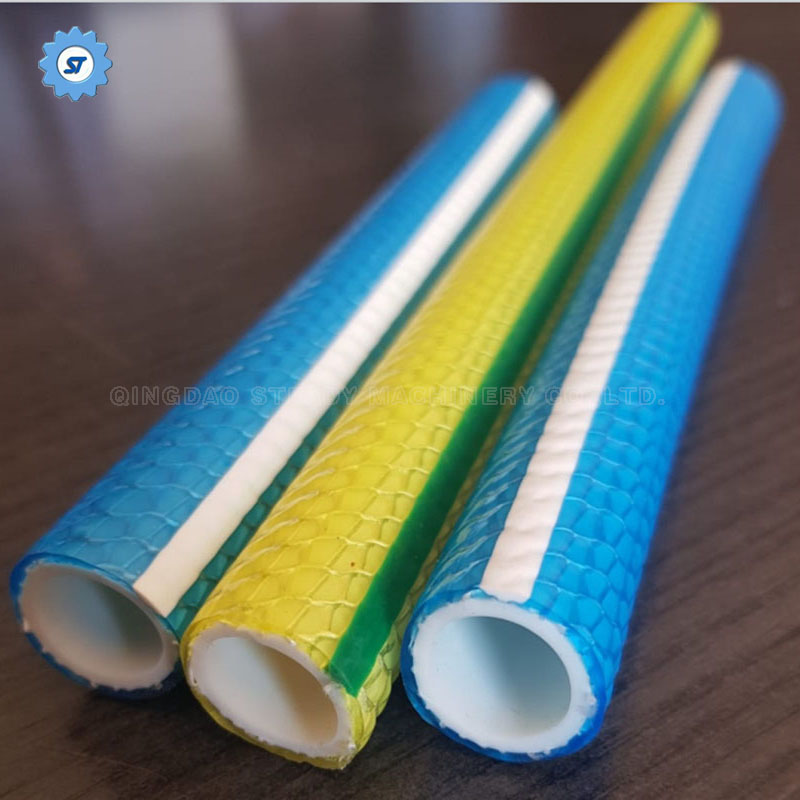

machine picture and braiding pattern as below:

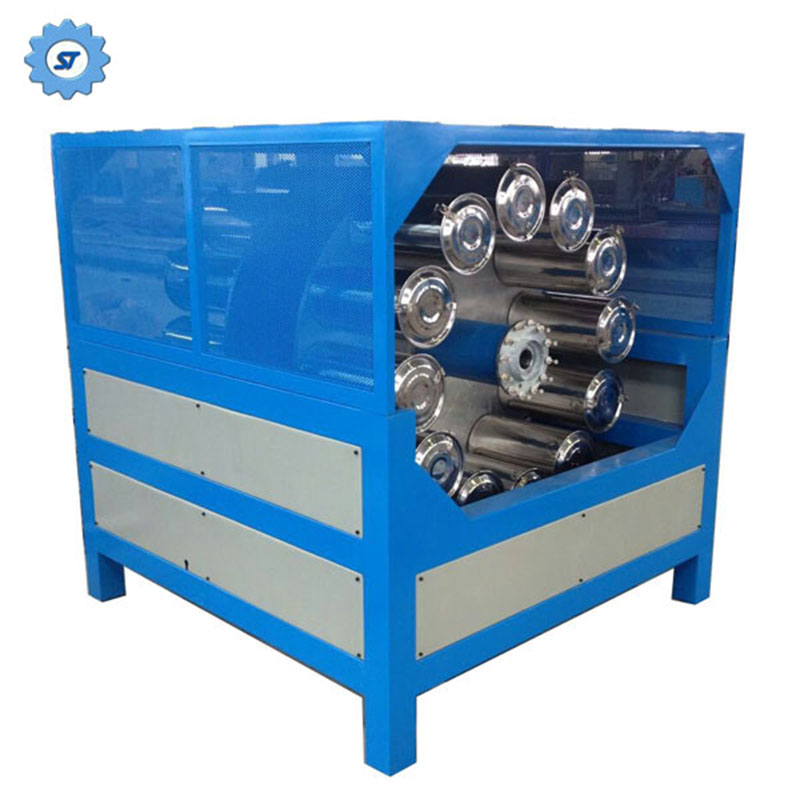

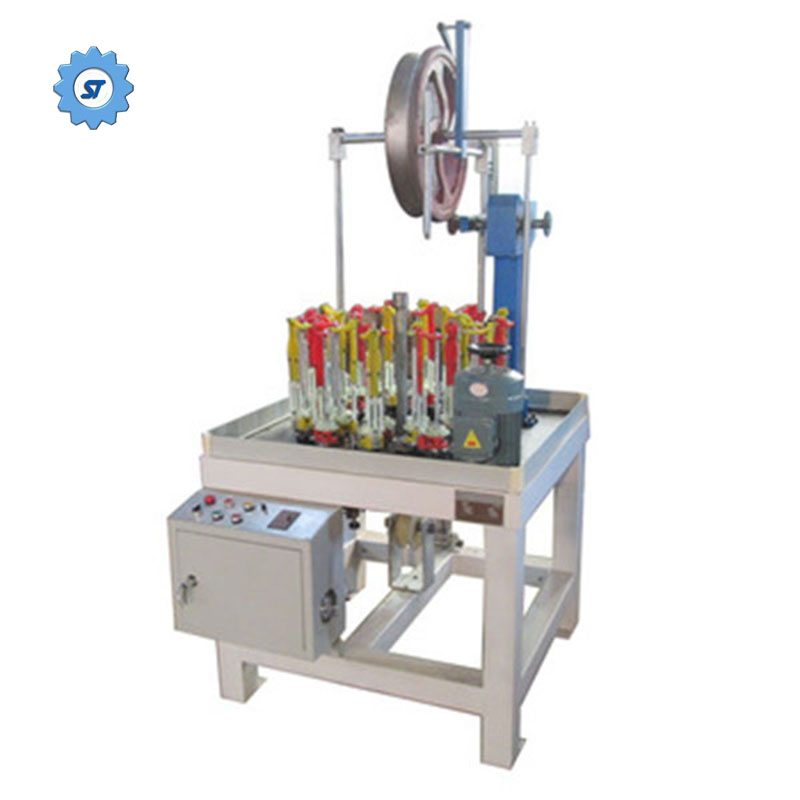

The 3rd type hose braiding machine, also been called hose knitting machine.

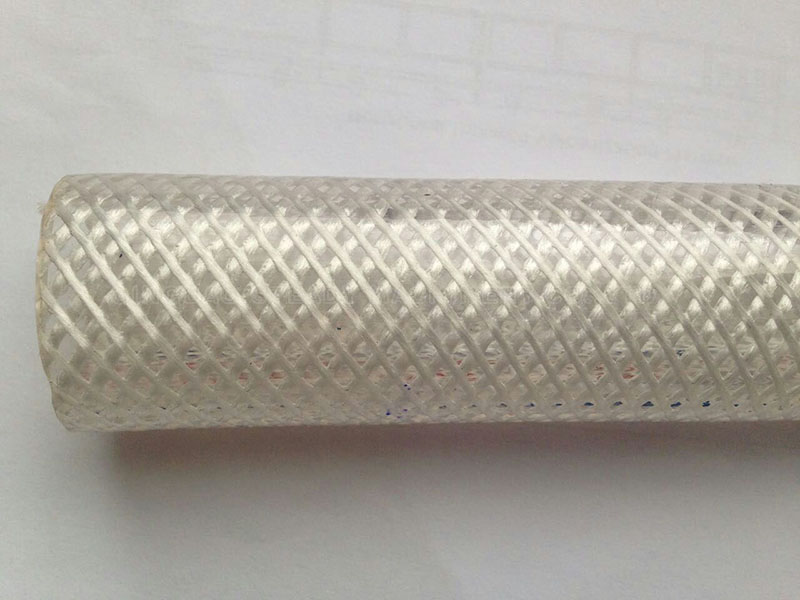

Machine reference picture and braiding pattern picture as below:

Since there are different type and model machines in hose braiding field.

So pleaase just contact us, tell us what braiding pattern you want and your hose diameter range, then we'll recommed most suitable hose braiding machine for you.
