A composite material hot press autoclave tank machine, also known as a composite curing autoclave, is a specialized equipment used in the manufacturing of composite materials.

It is commonly used in industries such as aerospace, automotive, marine, and sporting goods for the production of high-quality composite components.

Here are the key features and components of a composite material hot press autoclave tank machine:

1. Autoclave Chamber: The autoclave chamber is a sealed, pressure-resistant vessel where the composite materials are placed for curing.

It is typically cylindrical or rectangular in shape and made of high-strength materials such as carbon steel or stainless steel.

2. Heating System: The autoclave is equipped with a heating system to raise the temperature inside the chamber. It can use electric heaters, steam, or hot oil circulation to achieve the required curing temperature for

the composite materials.

3. Pressure Control System: The autoclave has a pressure control system to regulate the internal pressure during the curing process. It ensures that the composite materials are exposed to the required pressure levels for

optimal curing and consolidation.

4. Vacuum System: Many autoclaves have a vacuum system that allows for the removal of air and impurities from the composite materials before the curing process. This helps to eliminate voids and improve

the overall quality of the final composite structure.

5. Cooling System: After the curing process is completed, the autoclave's cooling system to bring down the temperature inside the chamber. This helps to reduce the curing time and allows

for safe handling of the cured composite parts.

6. Control and Monitoring System: Autoclaves have advanced control and monitoring systems that allow operators to set and monitor the curing parameters, such as temperature, pressure, and time.

These systems provide real-time feedback and ensure precise control over the curing process.

Composite material hot press autoclave tank machines are crucial for the production of high-performance composite components. They provide controlled heating, pressure, and vacuum conditions necessary

for the curing and consolidation of composite materials, resulting in strong, lightweight, and durable composite parts.

The machines are designed to accommodate various sizes and shapes of composite structures, offering versatility and flexibility in composite manufacturing processes.

And our tank with thermal keeping layer, which saves energy consumption.

The Advantage is safety, reliable, energy saving, compact structure.

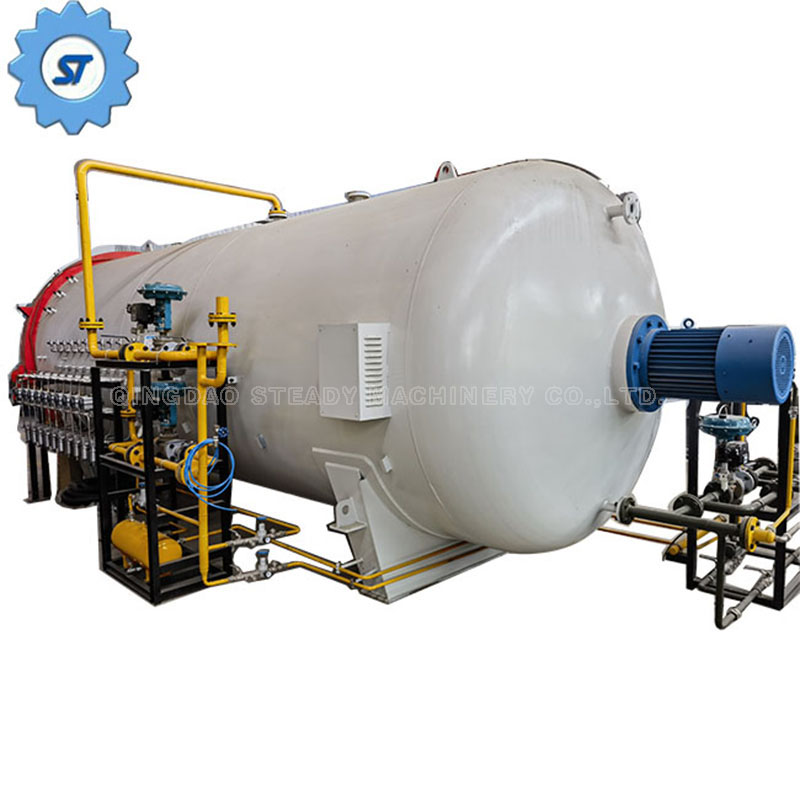

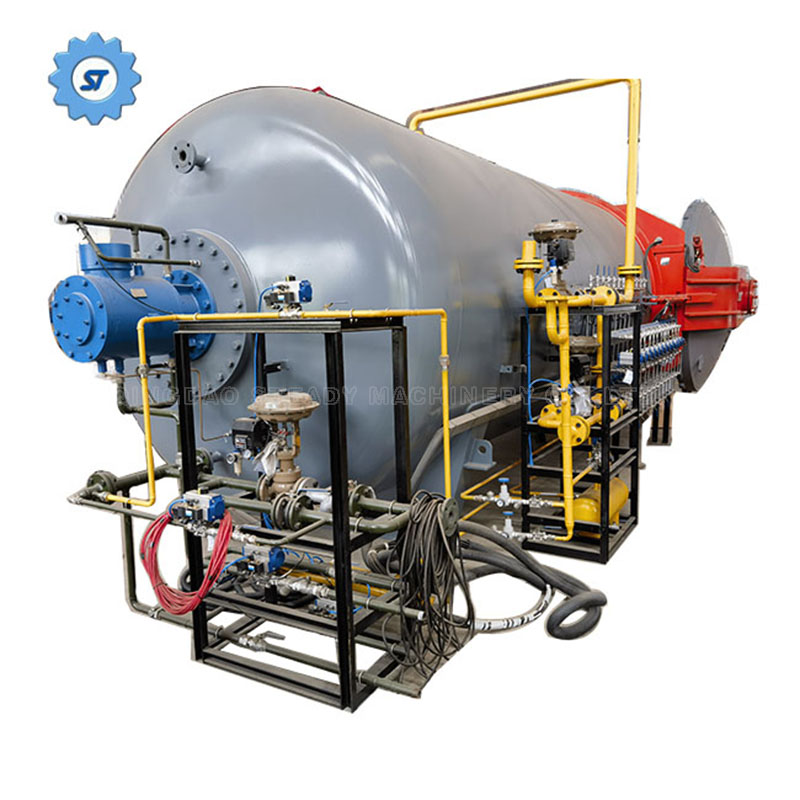

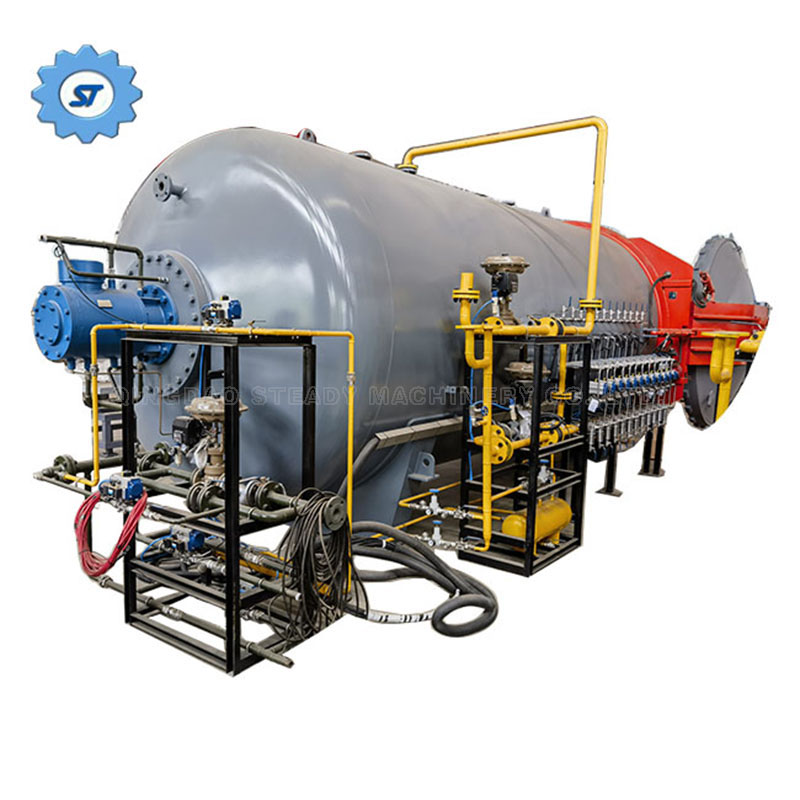

Below is one of the models for your reference, if you need other models or sizes, just feel free to ask us.

Detail Images:

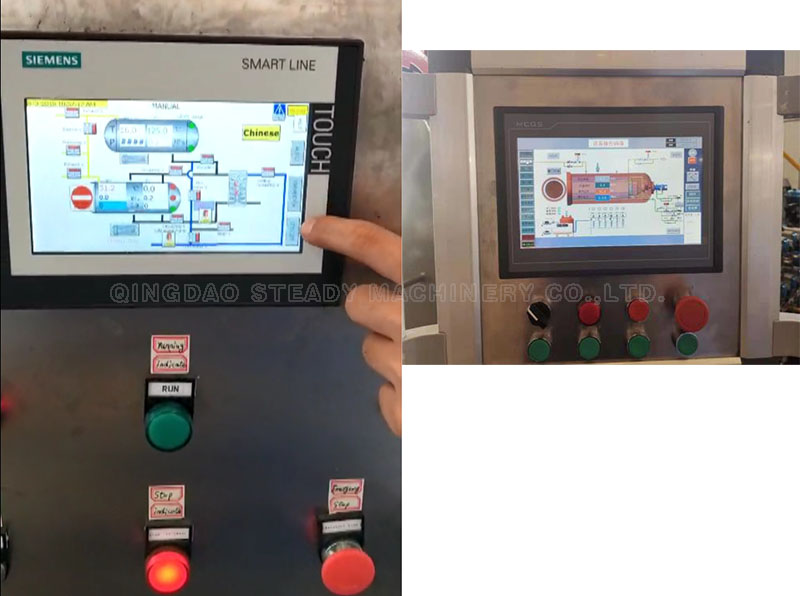

Control Panel

we design different type control panel according to machine needs or customers' requirements, here just put one for a reference.

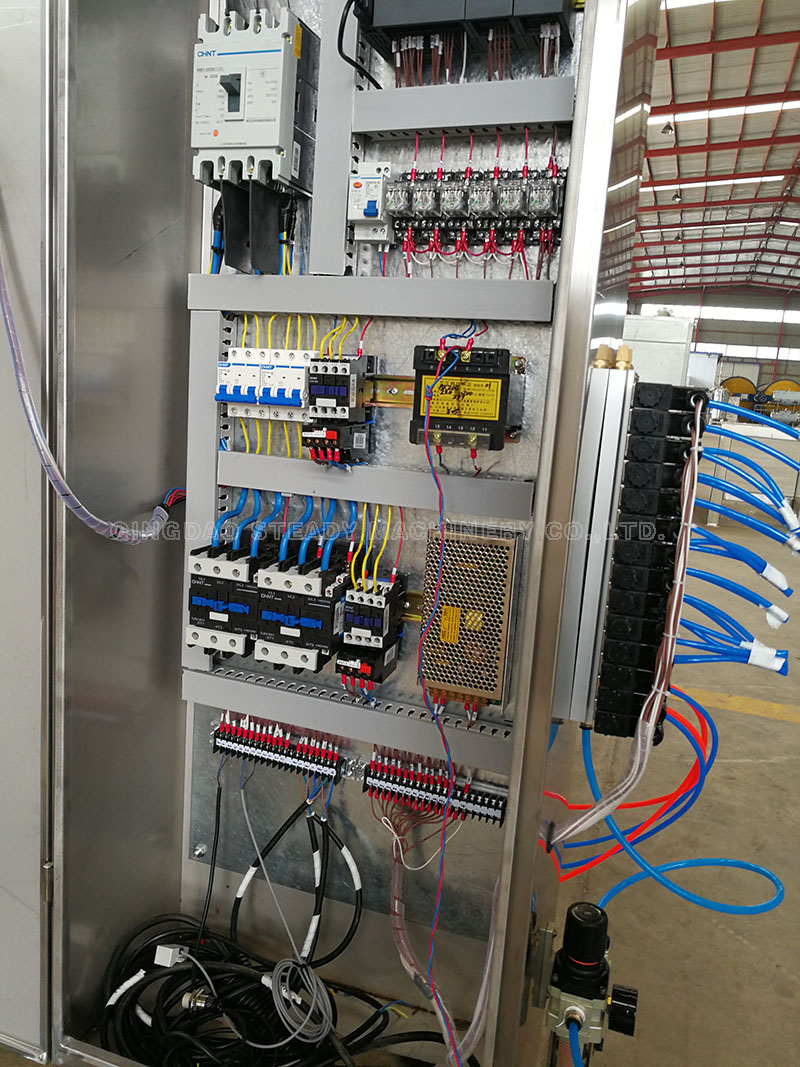

Control Box

CHNT brand, it's best brand of China made, works accurate and stable. When customers have different power voltage supply, we put a transformer into the control box, as you can see it from below picture.

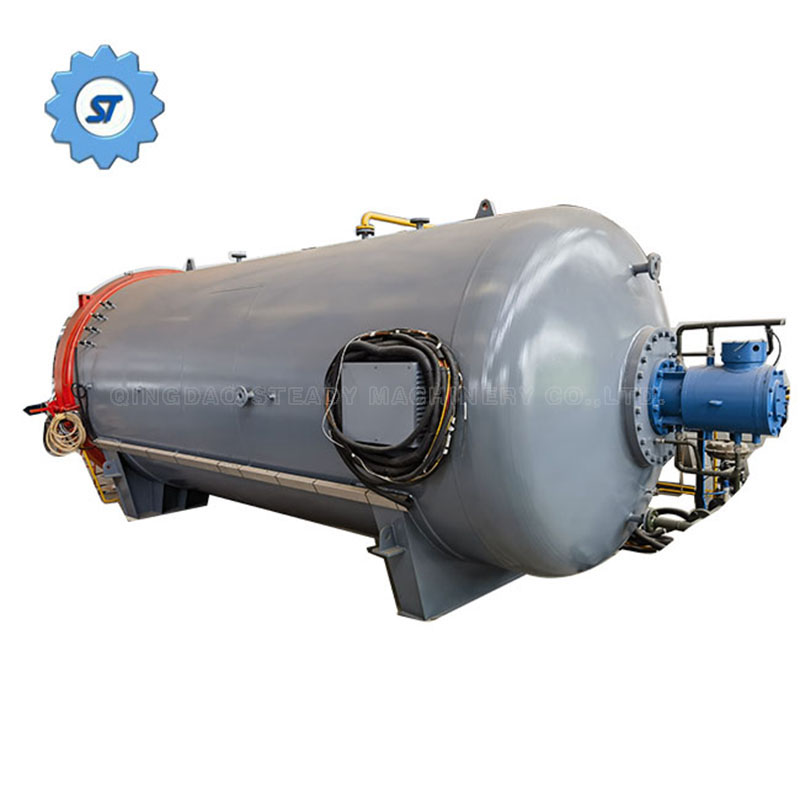

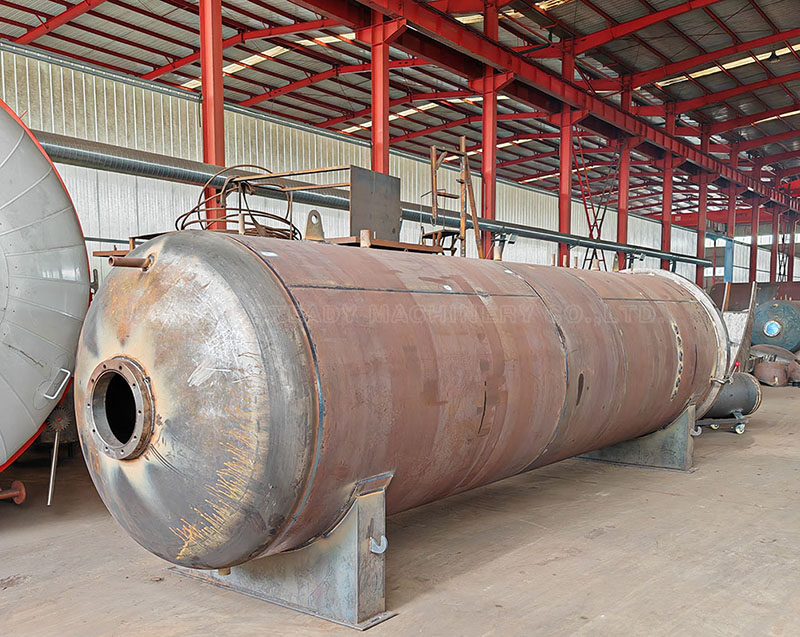

Tank body, we use Q345R as raw material

Steel Q345-R, as a widely used low alloy high-strength structural steel, represents the yield strength with "Q" in its grade, while "345" indicates that the yield strength (in megapascals, MPa) of this steel under

standard test conditions reaches 345MPa. The subsequent "R" symbol specifically indicates that the steel is suitable for container manufacturing,

that is, it has good welding performance and certain high-temperature resistance characteristics, and is suitable for the production of pressure vessels, storage tanks and other equipment.

The characteristics of Q345-R steel include:

1. Mechanical properties: In addition to having a yield strength of no less than 345MPa, it also has good tensile strength, generally up to 470-630MPa, as well as good toughness, plasticity, and weldability, ensuring

the safety of components under complex stress states.

2. Chemical composition: As a low alloy steel, Q345-R contains small amounts of alloying elements such as manganese (Mn), silicon (Si), titanium (Ti), niobium (Nb), etc. The addition of these elements can significantly

improve the comprehensive mechanical properties of the steel without significantly increasing its weight, ensuring strength while reducing the structural weight.

3. Corrosion resistance and high temperature resistance: Although Q345 series steel is mainly designed for room temperature environments, Q345-R has certain corrosion resistance and resistance to medium and

low temperatures (usually from room temperature to about 400 ℃) through specific composition adjustments and heat treatment, making it suitable for manufacturing containers that can withstand certain temperature and pressure.

4. Processing performance: Good cold forming and welding performance make Q345-R easy to process into various complex shaped components, meeting different engineering needs, especially in the fields of chemical, petroleum,

energy, etc. It has a wide range of applications.

In practical applications, Q345-R steel needs to undergo strict quality control and testing to ensure that its various performance indicators comply with relevant national standards (such as GB/T 713), in order to ensure its safety

and reliability under design and usage conditions. Whether it's building large oil storage tanks, high-pressure vessels, or industrial boilers, Q345-R is a trusted choice for engineers.

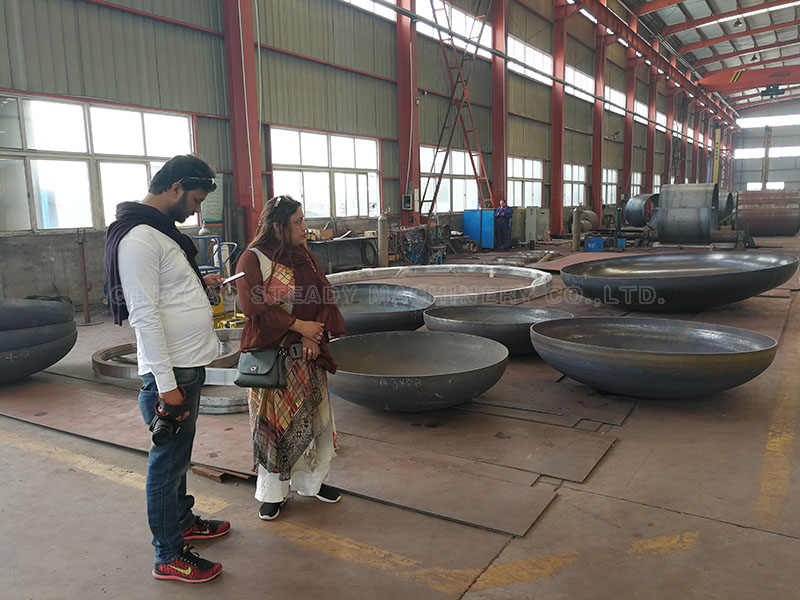

Ends cover of the tank body, aslo Q345R steel:

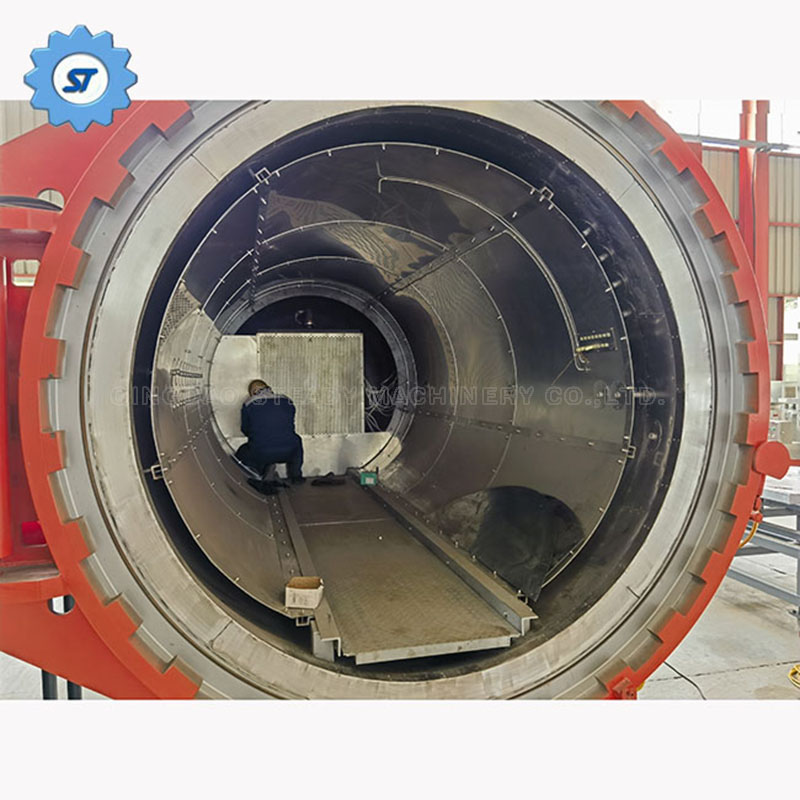

Inside view of steam heating rubber autoclave:

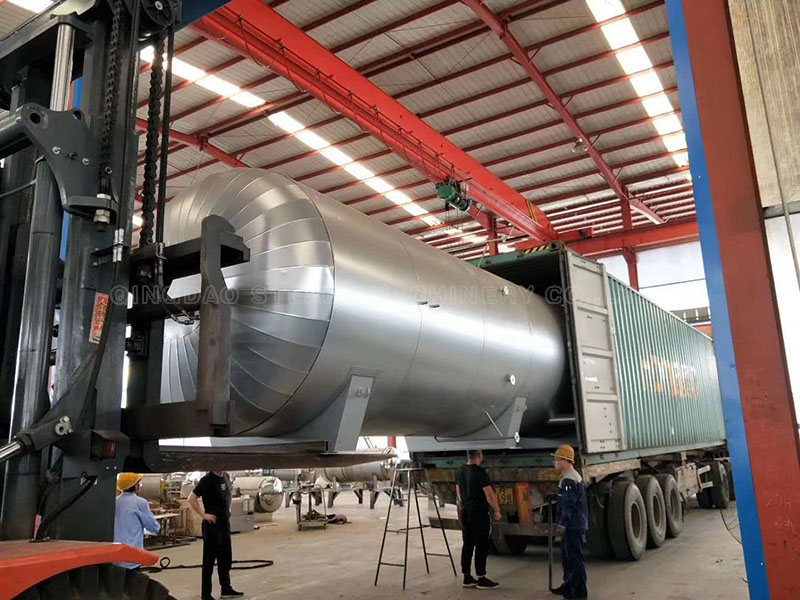

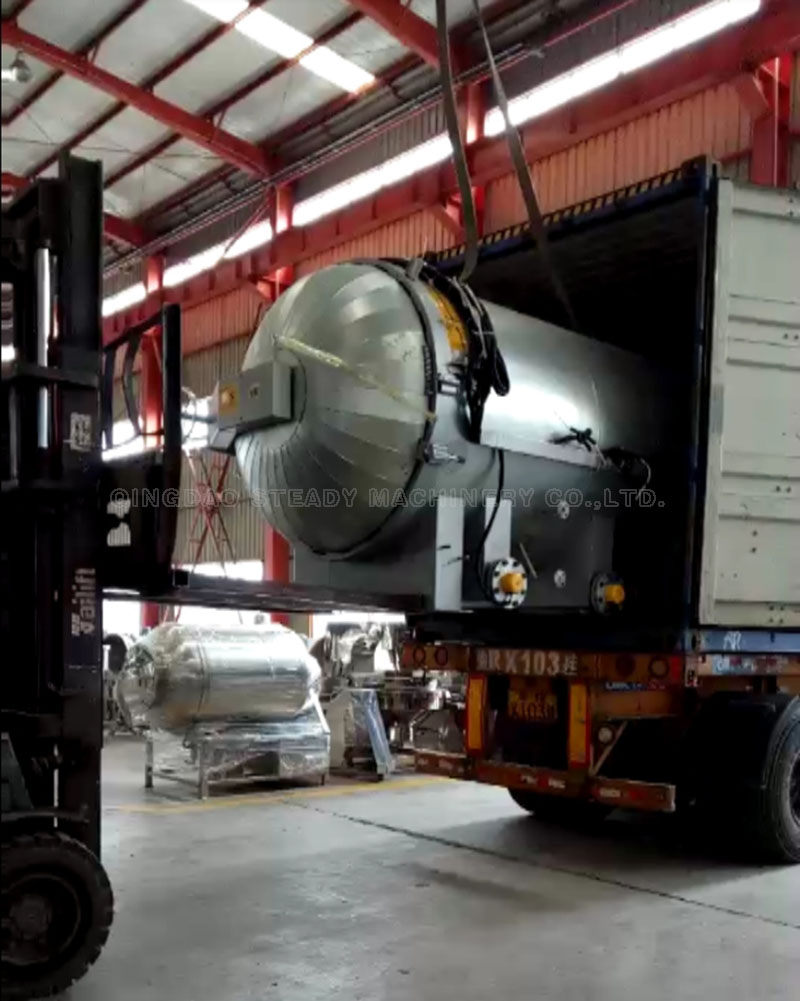

Autoclave tank loading container export

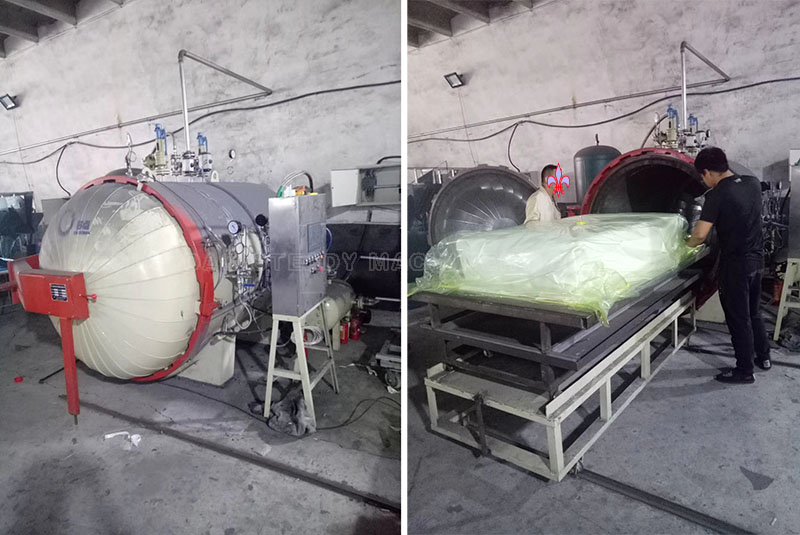

work in user's factory

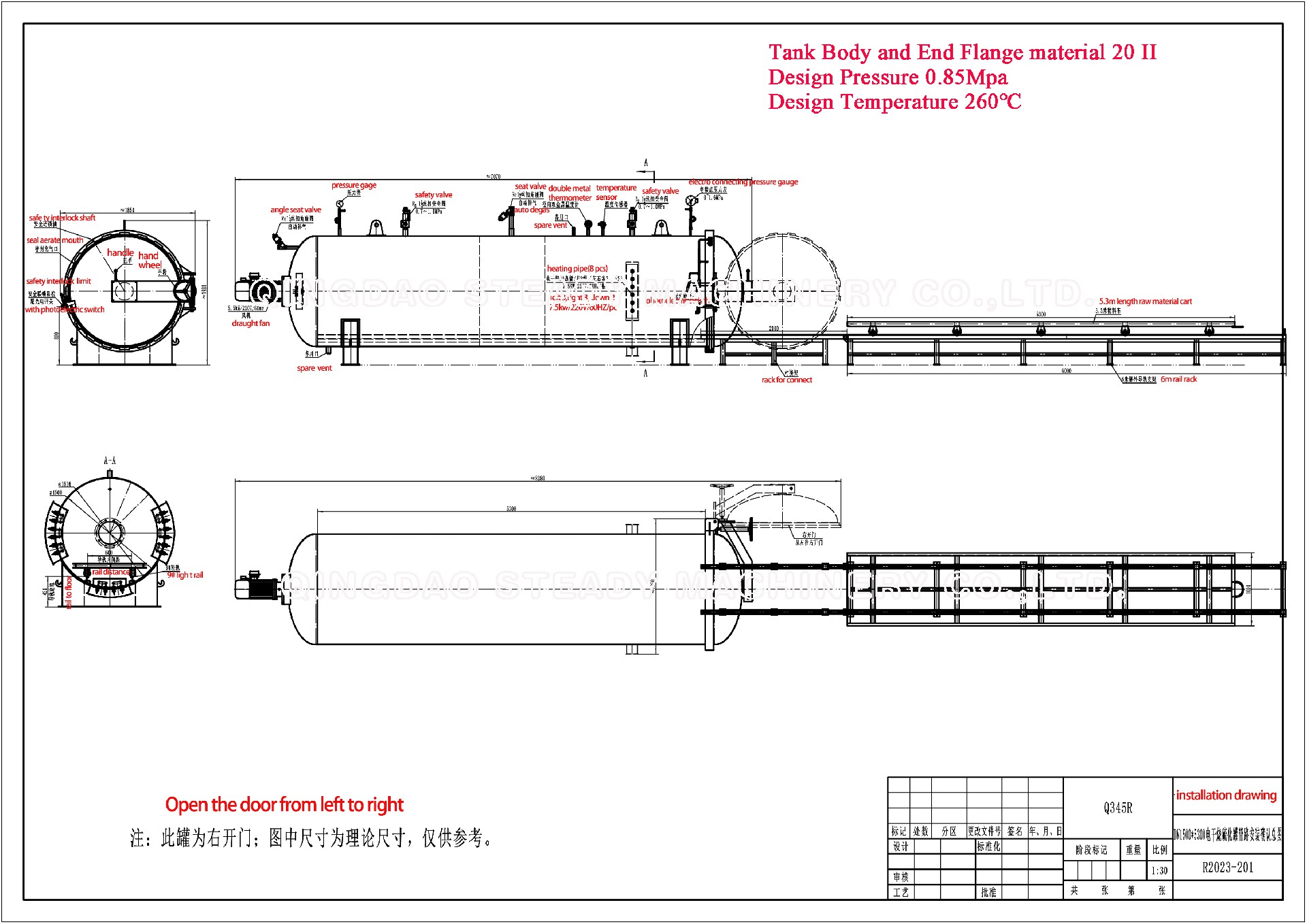

Hot press tank machine, a drawing for reference

The composite material hot pressing can forming process is a widely used technology in the manufacturing of high-performance composite materials, especially in the following fields where its importance and advantages

have been demonstrated:

1. * * Aerospace field * *: This is one of the most important application areas of hot press tank forming technology, including the manufacturing of aircraft skin, ribs, frames, various wall panels, floors, fairings and other main

and secondary load-bearing structural components. Due to the requirement of high strength, lightweight, and complex shape for these components, hot pressing can molding can ensure that the composite material achieves

the necessary mechanical properties and dimensional accuracy.

2. * * Defense Industry * *: Similar to aerospace, the defense industry also requires a large number of high-performance composite components, such as radar hoods, missile shells, armor plates, etc., which also

rely on hot pressing tank forming technology to ensure the high strength and durability of materials.

3. * * Transportation * *: Transportation vehicles, including cars and high-speed trains, are increasingly using composite components to reduce weight, improve fuel efficiency and performance. Hot pressed tank forming is

suitable for manufacturing such large and complex shaped structural components.

4. * * Energy Industry * *: Energy related facilities such as wind turbine blades, oil and natural gas pipelines require corrosion-resistant, lightweight, and high-strength composite materials. Hot press tank forming is

an ideal choice for manufacturing such large structures.

5. * * Sports and leisure products * *: such as golf clubs, snowboards, bicycle frames, etc., these products pursue ultimate performance and lightweight, and hot pressing can molding can meet their material performance

requirements.

6. * * Ship Manufacturing * *: Composite materials are used in ship construction to reduce ship weight, improve speed and efficiency, and the hot pressing tank forming process can manufacture large ship structural components.

7. * * Infrastructure construction * *: Reinforced composite components used in structures such as bridges and buildings, which are formed by hot pressing tanks to achieve better mechanical properties and durability.

In summary, hot press can forming technology is widely used in various high-end manufacturing fields that have strict requirements for material performance due to its ability to provide high-quality and high-performance

composite material components.
