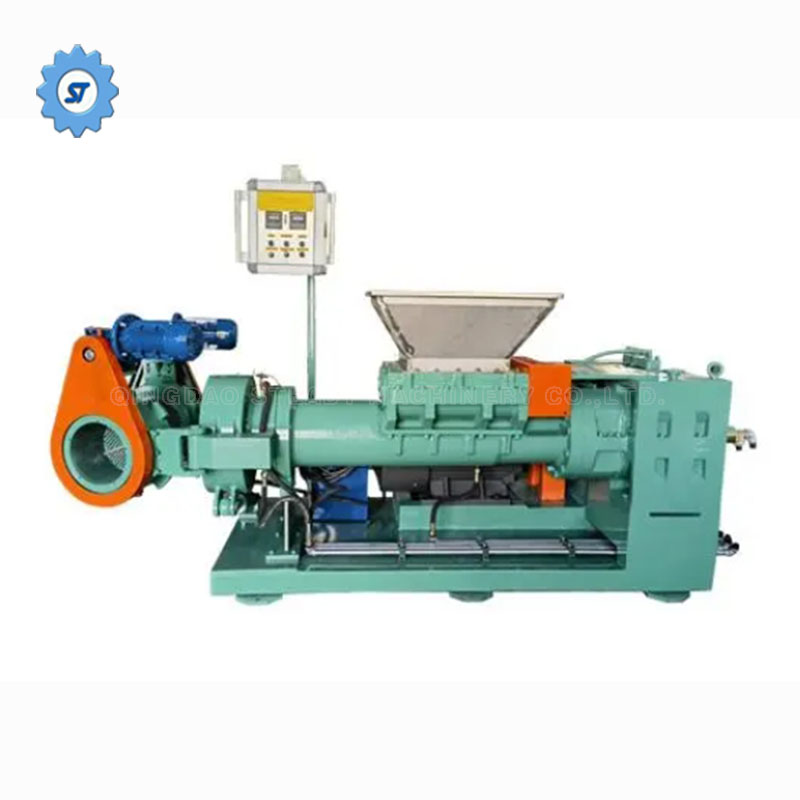

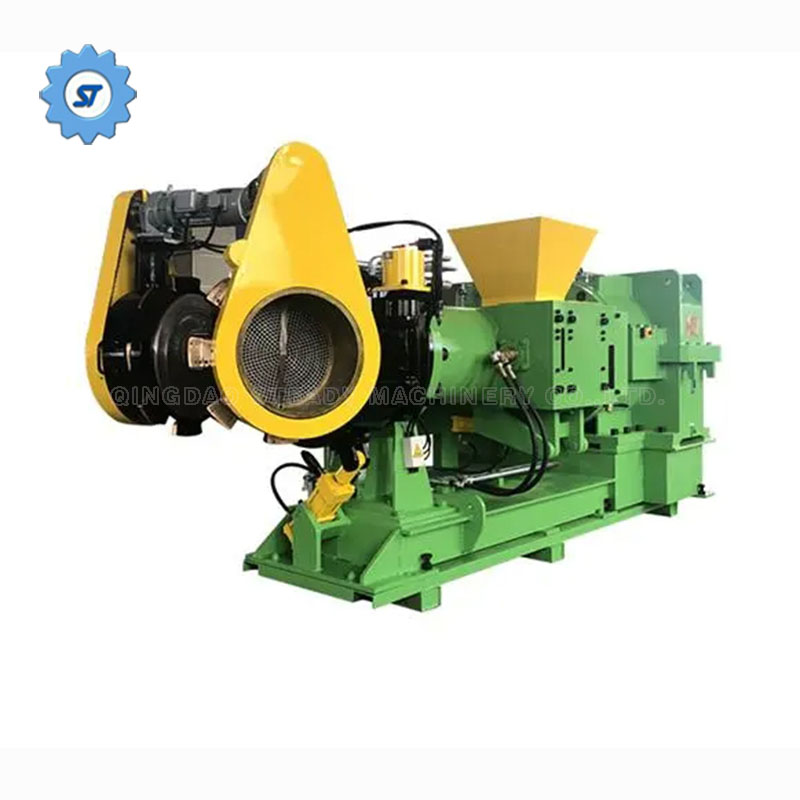

Brief Introduction of Hot Feed Rubber Strainer Extruder Machine:
Rubber strainer exruder uses screw extrusion and conveying to remove impurities from natural rubber materials or recycled rubber.
Hot feed rubber strainer filter extruder machine is suitable for industries -- rubber hoses, rubber inner tubes, and rubber seals.
It mainly consists of screw, machine barrel, filter head, and transmission device.
The rubber filter head is equipped with an orifice plate and a filter screen. The orifice plate is used to support the filter screen and serves as a discharge port.
On the filter screen, there are holes along the direction of rubber material flow. The length to diameter ratio of the screw of hot feed rubber filter machine is generally around 5.

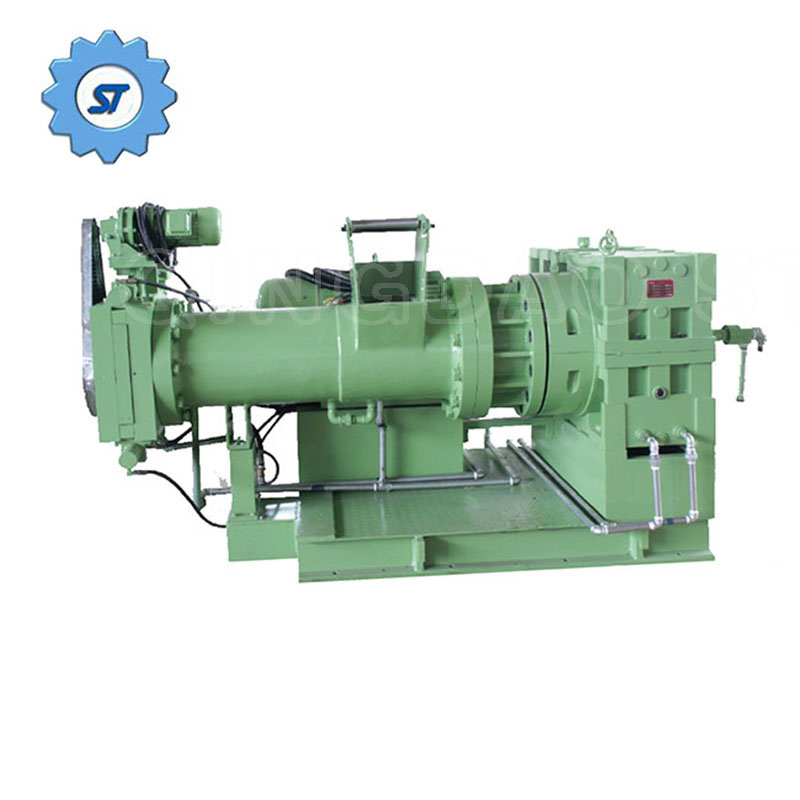

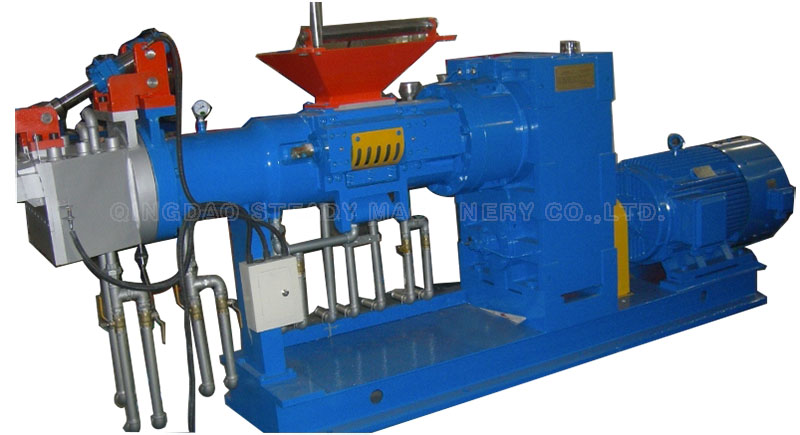

Common Hot Feed Rubber Extruder Models
| Model | XJL-115 | XJL-150 | XJL-200 | XJL-250 |
| Screw diameter(mm) | 115 | 150 | 200 | 250 |
| Length-diameter ratio of screw | 4.8 | 5.15 | 5 | 4.8 |
| Max. Rotation speed of screw(r/min) | 40 | 48.5 | 47.2 | 40 |
| Motor Power(kw) | 25~37 | 37~45 | 55~90 | 90~132 |
| Speed of Cutting Device(rpm) | 16 | 16 | 16.8 | 11 |
| Steam pressure(Mpa) | 0.3~0.6 | 0.3~0.6 | 0.6-0.8 | 0.6-0.8 |
| Cooling water pressure(Mpa) | 0.2~0.3 | 0.2~0.3 | ≥0.2 | ≥0.2 |
| Output(kg/h) | 300 | 450 | 900 | 1500 |
| Overall dimension L×W×H（mm） | 2700×655× 1850 | 3400×1220× 1900 | 3500×1300× 1950 | 3800×1400× 2000 |
| Weight(kg) about | 2800 | 3700 | 4500 | 7200 |

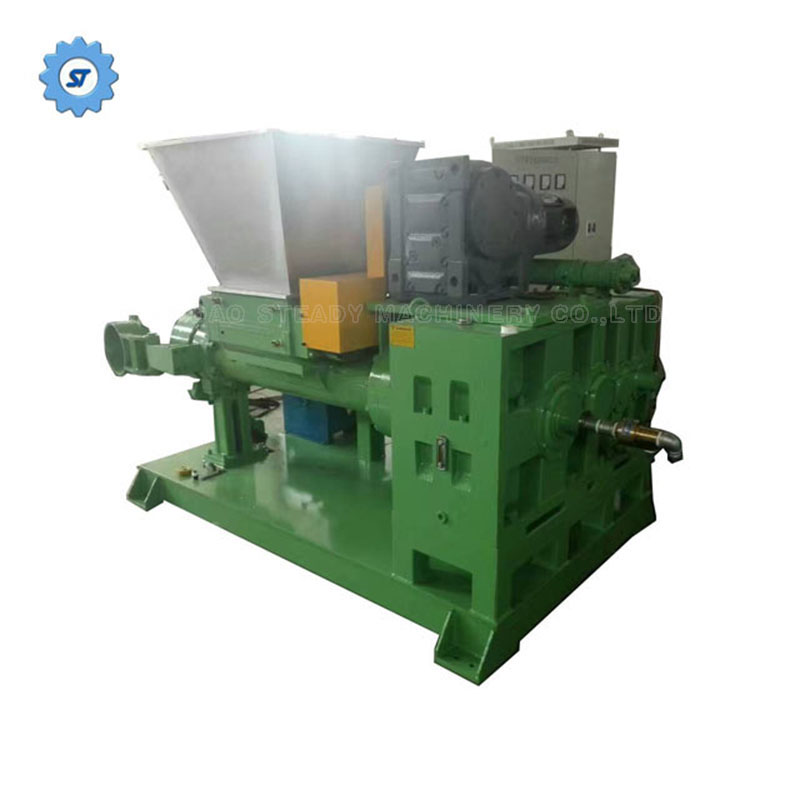

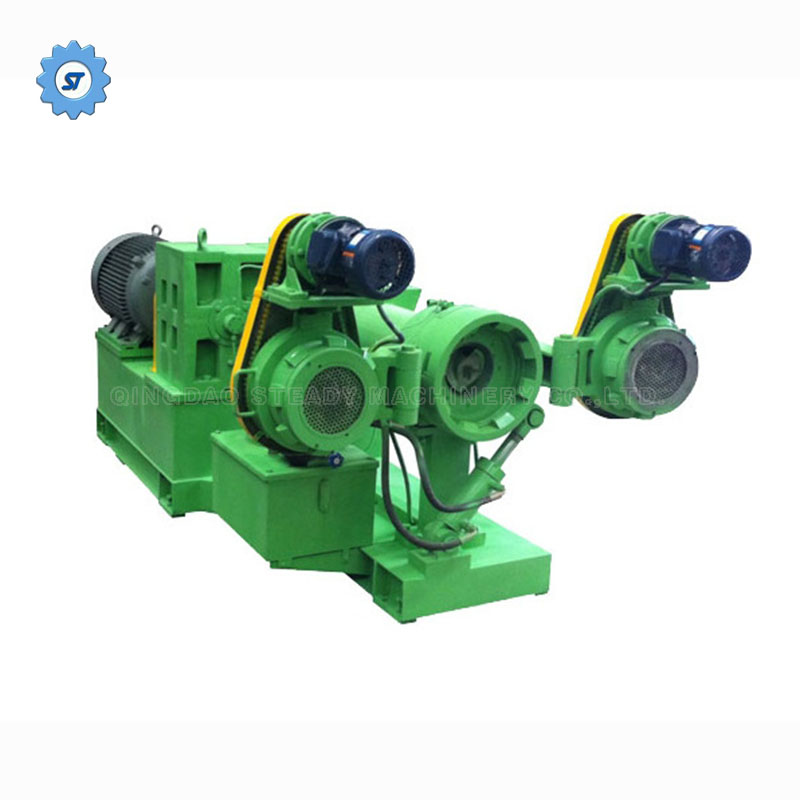

Double Propeller/propellor rubber filter
Double propeller rubber filter can be operated continuously and automatically, saving more manpower.
It has large production capacity and is about twice output of general/common rubber filters of same screw diameter size.
It is particularly suitable for handling large and simple filtered rubber materials, with simple operation and easy maintenance.
| Model | JLDP-150 | JLDP-200 | JLDP-250 |
| Screw diameter(mm) | φ150 | φ200 | φ250 |
| Length-diameter ratio of screw | 7:1 | 6:1 | 4.4:1 |
| Rotation speed of screw(r/min) | 5~50 | 4.5~45 | 4~40 |
| Motor Power(kw) | 37~45 | 55~90 | 90~132 |
| Speed of Cutting Device(rpm) | 16 | 16.8 | 11 |
| Steam pressure(Mpa) | 0.3~0.6 | 0.6-0.8 | 0.6-0.8 |
| Cooling water pressure(Mpa) | 0.2~0.3 | ≥0.2 | ≥0.2 |
| Output(kg/h) | 900 | 1800 | 3000 |
| Overall dimension L×W×H（mm） | 3400×1400× 1900 | 3500×1400× 2000 | 3800×1500× 2000 |
| Weight(kg) about | 4000 | 5000 | 8000 |

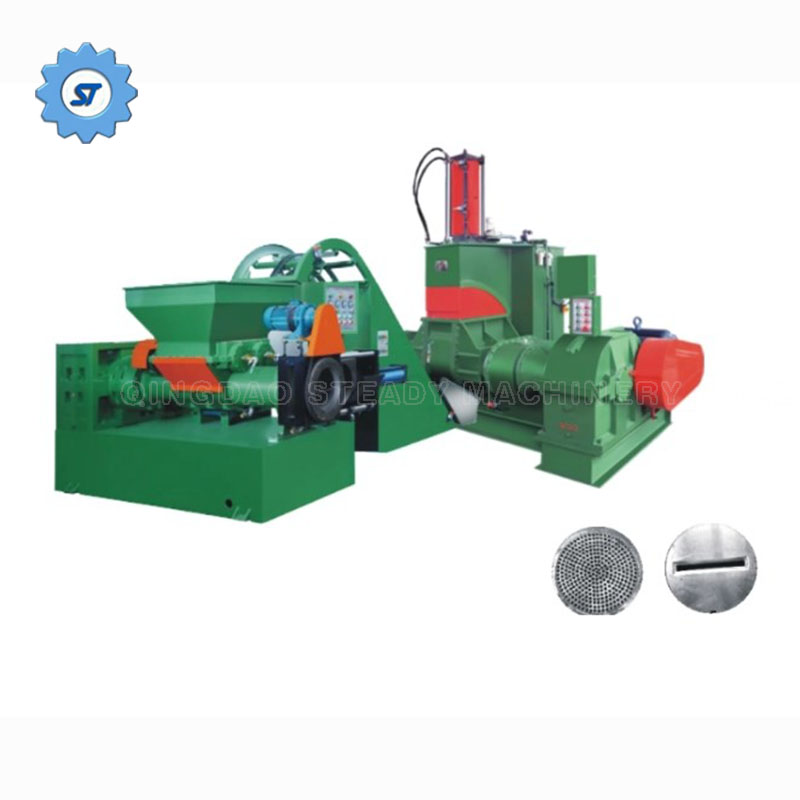

Double Cone Screw Feeding Rubber Strainer Filter

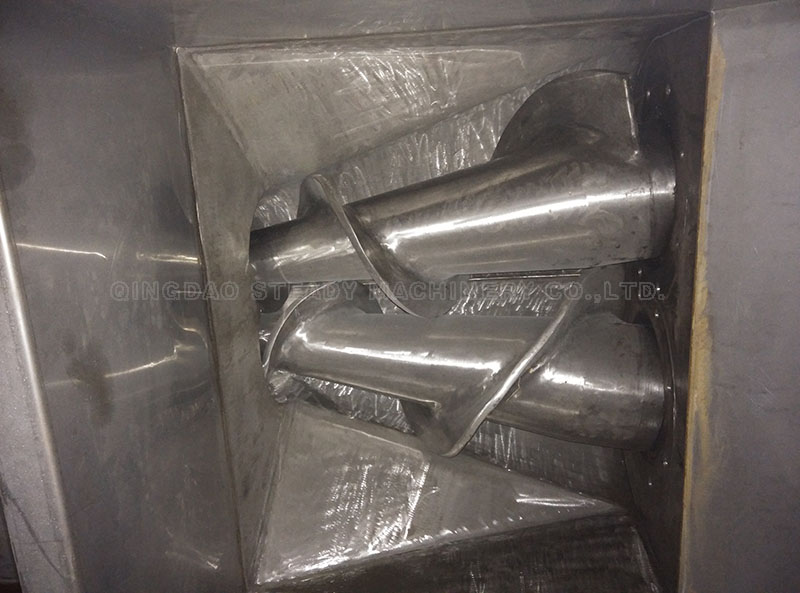

Double cone screw feeding rubber filter machine consists of two parts: conical twin-screw extrusion feeding part and rubber filter part.

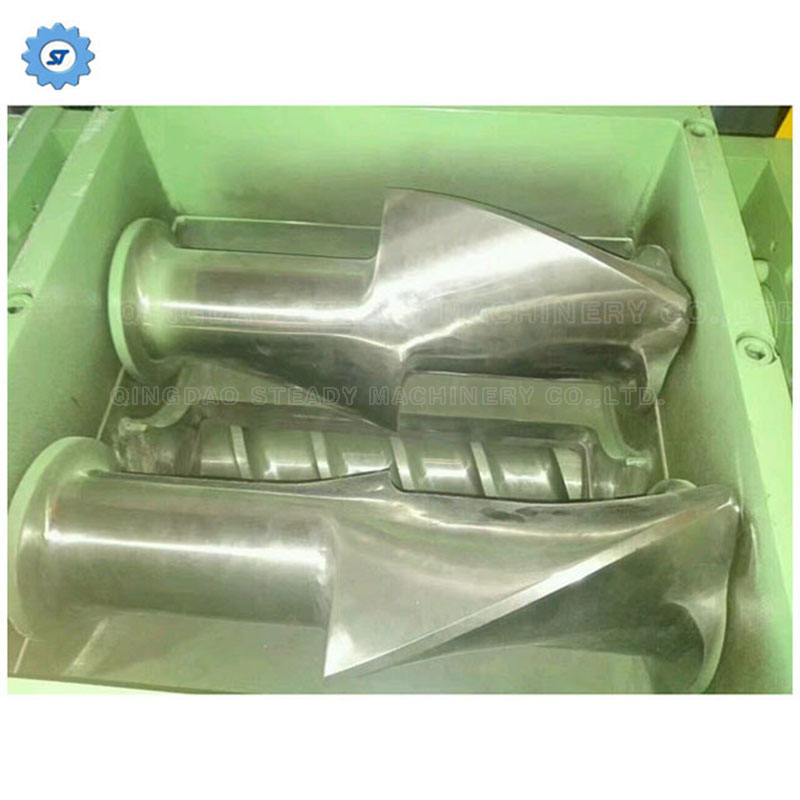

The conical twin-screw extrusion feeding section mainly consists of two conical screws and two drums. It is mainly used for following rubber internal kneader mixer.
The rubber compounds mixed by rubber kneader is continuously extruded to the rollers through the two conical screws of this kind rubber filter extruder.
Rubber raw material here is continuously rolled and formed as per the set speed of the extruder machine. Thus the impurities are filtered out through the rubber filter machine.
The machine can achieve continuous extrusion ad filtration. This kind rubber filter extruder does not need a single worker specially to operate it, save labor force, reduce production cost,
improve work efficiency and market competitiveness.
Qingdao Steady Machinery Co.,Ltd. hot feed rubber extruder advantage:
Our extruder machine has high feeding efficiency, high output, the extruded products has good air tightness, and high quality level.
According to customers' requirements, different types machine head can also be customized. By changing machine head, different shape rubber products can be produced.
Rubber Extruder, machine head for reference (we can make various shape & size extruder head according to customers' work needs or requirements) :
Mold of Common Hot Feed Rubber Extruder
T-head of Common Type Hot Feed Rubber Extruding Machine:
Hydraulic Driven Tire Tread Head of Common Type Hot Feed Rubber Extruder:
Advantage of Qingdao Steady Machine's Hot Feed Rubber Extruding Machine:
Our Screw & Barrel Advantage is as below, ensures our machine is 1.5 ~2 times more durable than other supplier's extruder machines:
The material is: 38CrMOALA
Temper Degree：HB240°～280°
Nitriding Hardness：HV850°～1000°
Nitriding Deepness：0.45～0.7mm
Nitriding Brittleness：≤Grade Ⅱ
Surface Roughness：Ra0.4
Screw Straightness：0.015mm
Hard Chrome Plating after Nitriding：≥900HV
Chrome Thickness：0.05～0.10mm
Two-phase Alloys：HRC56°～65°（nickel-base alloy）
Alloy Deepness：1.5～2.0mm
Control Panel, which is movable on extruder machine, so it's easy for worker to operate in any position around our extruder machine,
and we can put your language beside the buttons.
Control Box, our rubber extruding machine use high quality electronics, ensures the machine working sensitive and reliable.
The speed adjustment is very smooth and stepless.
Motor, according to machine model and work, there are AC motor and DC motor two kinds to our rubber extruding machine.
Our extruder machine adopts copper wire motor, which have good conductivity, low resistivity, and can achieve larger output power at smaller currents, thereby reducing electrical energy loss. Good corrosion resistance.
Copper wire motors are less prone to rusting and have a longer service life.
Excellent reliability. The connection points and joints of copper wire motors are easy to solder and connect, thus having higher reliability.
More durable.
The durability of copper wire motors is better than that of aluminum wire motors, because aluminum wire has a higher resistance than copper wire and generates higher heat during use, which can easily burn out the motor.
More energy-efficient, copper wire motors have a smaller resistance and lower heat generation, making them more energy-efficient.
More silent, copper wire motors used in our rubber vulcanizing press machine have less noise because aluminum wire motors have a noise level approximately 7 decibels higher than copper wire motors.
Mold, good parts makes good machine, but it also need a good design. We are just the maker which can provide you a perfect proposal according to your detail work needs.
Drawing just for Reference, if you want us make extruding mold for you, please send us your drawings or samples.
The equipment models and production processes used in the production of different rubber products are also different. Some rubber products require vacuum pumping during production, while others require the use of pin type rubber extruders during production. In addition, some products belong to single extrusion products, while others require the use of composite rubber extruders for extrusion production. The molding equipment and auxiliary equipment used in the production of different rubber products need to be selected based on the actual needs of the products.
Just contact and tell us your work needs, we'll provide you a suitable proposal, high quality hot feed rubber extruder with most reasonable price.
Attend Rubber Products and Rubber Machine Exhibition:

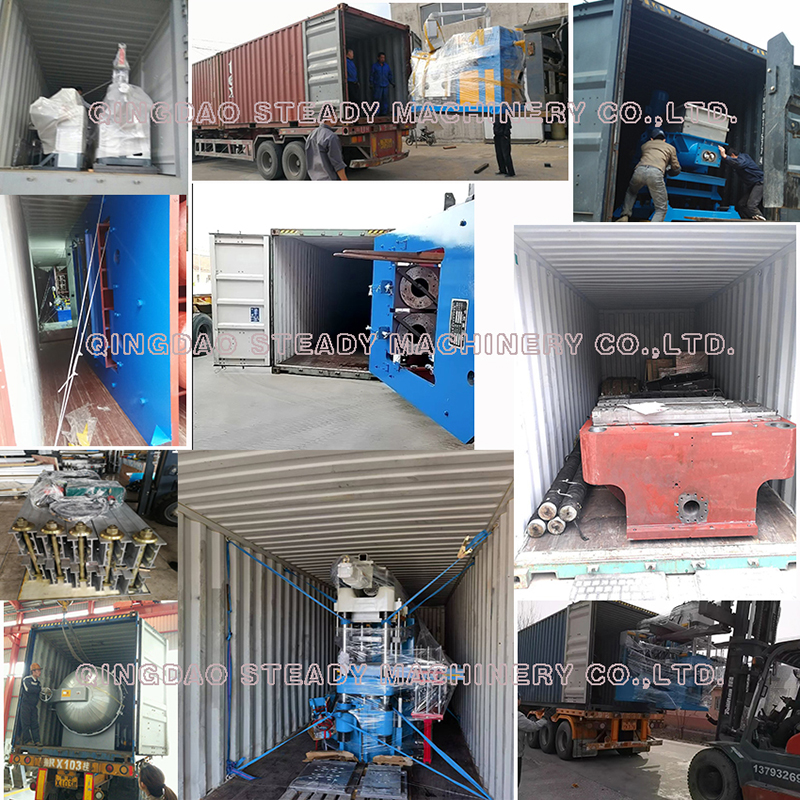

Qingdao Steady Machinery Co.,Ltd. rubber machines Export Loading Containers, picture for reference:
